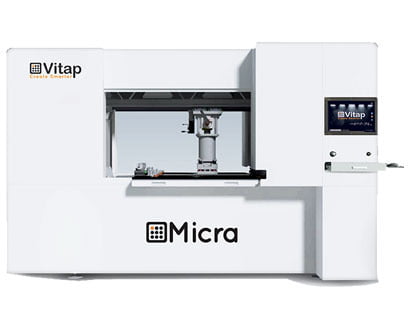

Vitap CNC PUNCHING MACHINE AND SYSTEM FOR THE PRODUCTION OF MICRO- PERFORATED PANELS (INDUSTRY 4.0)
₹22,050,000.00
Warranty
12 Months GST Extra
18% Available on Request
FEATURES
Simple, user-friendly, reliable and a high-performance machine
- The range of punching pins on the head lies between 250 and
2331, depending on the type of panels and surfaces to be punched
- Can achieve the range of micro-hole pin punches mentioned
above (250 � 2331) every 4 seconds
- X-Y-Z Axis:
2 X-Axis latest generation brushless motors with high-precision
planetary reduction gear pinion and rack
Y-Axis latest generation brushless motor with planetary reduction
gear pinion and rack with high precision
Z-Axis powered by hydraulic central unit
- The punching unit moves in the Y-Axis and punches in the Z-Axis
from the top.
- Industrial PC for high programming performance
- Simple programming
- LCD TFT monitor 20" USB port for loading programs created on a
CAD station
- Basic version CAD TPA for graphic programming
- Storage of all files with all data
- Macro programming .dxf file import
- Software for optimization of the micro-holes on the panel to be
punched
- Since this high-performance CNC punching machine does not use
lasers there is no danger of fires breaking out and respectively
health hazardous fumes
- We can design the punching head according to customer needs
with regards to the diameter and spacing of the pins
- Standard punching head 5 mm pin spacing in X and Y directions
plus pin in the center of the square.
- Can punch smaller spacings via the program but needs to be a
multiple of the implemented pin spacing
- Micro holes in standard machine base 0.5mm in diameter.
- C1901245 : Bar code reader and software
- 56503174 : Frontal and rear rollers for long panels mm830x630
- 58005864 : Electrical panel air conditioner
- 005910 : Voltage stabilizer, pc only
- C2102017 : Ep0 Grease cartridge for guides bushings 400 gr
- Packing Normal Pallet and nylon
TECHNICAl DATA:
- Length 3,600 mm
- Width 1,701 mm
- Height 2,270 mm
- Weight 3.000 kg
- Maximum punching/drilling depth: 3 mm (Depending on material used)
- Horizontal movement speed of panels on X-axis: 25 m/min
- Horizontal displacement speed on Y-axis: 35 m/min
- Max air consumption: 500 NL/min
- Operating pressure: 6-8 Bar
- Minimum panel length X : 370 mm
- Maximum currently programmed panel length (X): 3,000 mm
- Maximum currently programmed panel weight: 80 kg
- Minimum panel width Y : 150 mm
- Maximum panel width Y : 1.300 mm
- Minimum panel thickness: 5 mm
- Maximum panel thickness: 50 mm
- 400V/3 ph/50-60Hz (others tensions available)
