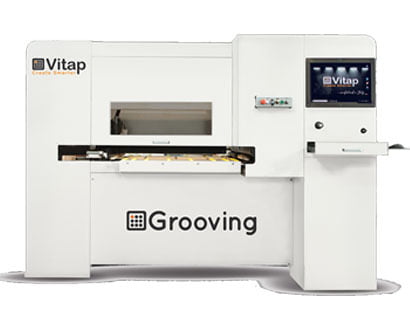

Vitap CNC GROOVING MACHINE (INDUSTRY 4.0)
₹8,800,000.00
Warranty
12 Months GST Extra
18% Available on Request
Grooving machine with through feed panel, Working from the bottom and automatic return to the operator or to the back side
FEATURES:
X Axis - Panel movement with two dinamic clamps
Y Axis - Grooving head movement with pinion and precision rack
Z Axis - Movement with screw at spherical recirculation
-n.1 shaft for saw blades and presetting with rapid hook HSK
- High productivity and flexibility
- Control: Full Parametric
- Industrial pc for better programming performance
- Software dedicated for programming and optimization of the drilling
- Monitor LCD TFT 20"
- Import DXF files
- CE standards
- C1901245 :Bar code reader and software
- 56503174 : Frontal and rear rollers for long panels mm830x630
- 51304350 : Spare blades shaft (without blades)
- C3301238 : Office Programming software TPA
- 58005864 : CONDITIONER FOR ELECTRIC CABINET 300W
- 005910 : Voltage stabilizer, PC only
- 56506145 : Centralized 22 POINT ELECTRIC GREASING PUMP (to be bought with the machine)
- C2102022 : 2 KG GREASE CARTRIDGE LIKO ETP0 (only with C2102021/C2102020)
- C2102017 : 400 GR GREASE CARTRIDGE LIKO EP0
- C2102016 : GS ARTIC GREASE CARTRIDGE POUR TETE 400GR
- Packing Normal Pallet and nylon
TECHNICAl DATA:
- N.1 Shaft and pre-settable rotating counter
- N.7 circular saw blades entre-axe: 30 mm - diameter 125 mm, blade thickness 4 mm
- Z 12, blade body thickness 2.8mm
- Max. shaft rotation speed 7000 RPM
- Max panel weight 50Kg
- Max panel size: X no limits, Y 1200 mm, Z 50 mm
- Min panel size: X 400 mm, Y 300 mm, Z 12 mm
- Size: 2615x1640x1890 mm
- Weight: 1150 Kg
