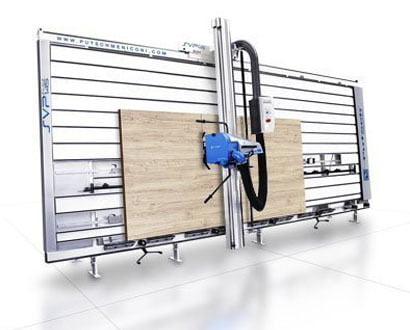

Vertical Panel Saw with V-Grooving Kit & Accessories
₹9,435,000.00
Warranty
12 Months GST Extra
18% Available on Request
for cutting in vertical and horizontal position.
- Heavy duty machine assuring strength with a welded steel frame.
- Automatic shifting frame to avoid the cutting of the plastic strips during the horizontal cuts.
- Bottom aluminium supports with phenolic soles, for a safe support of the panels, and with Lift-up Rollers for a better
sliding of the same.
- Manual displacement of the beam and saw carriage for horizontal and vertical cuttings; these last are assured in N��� 5
fixed points locking to the frame.
- Manual plunging and returning of saw carriage, by means of ergonomic lever.
- Automatic shifting frame: ELECTRIC.
- Short piece cutting device.
- Integrated dust exhauster with bag or pre-arranged for independent dust collection.
- N���? 4 positioners for horizontal cuttings.
- N���? 2 Stops for vertical cuttings.
- Lift-up rollers.
- SELF-BRAKING motor.

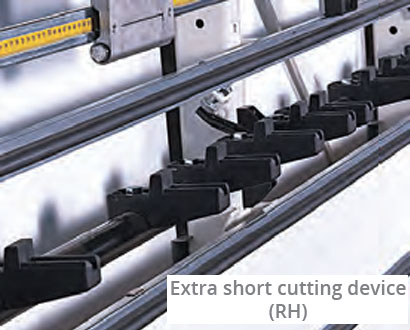

- Extra short cutting device (RH)

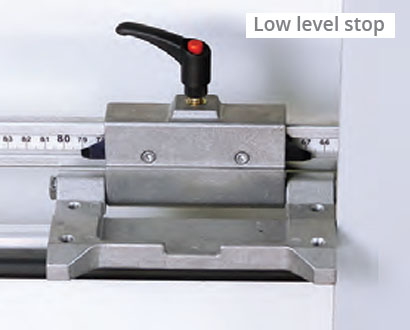

- Supplementary low-level stop

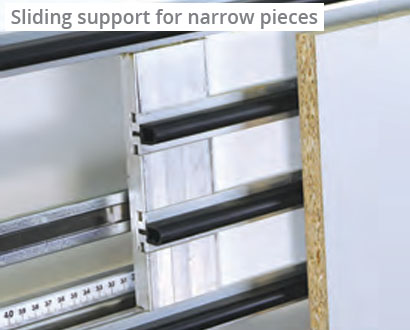

- Sliding support for narrow pieces

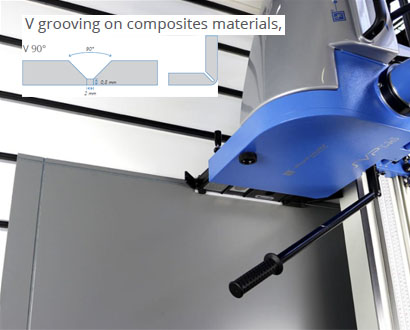

- Kit V-Grooving with Adjustable Thickness Stop, for composite materials (cutters not included)
- Cutter with knives 90���?
- All standard accessories: safety device, soundproofing, set service tools, user���?�s manual.
TECHNICAL SPECIFICATION

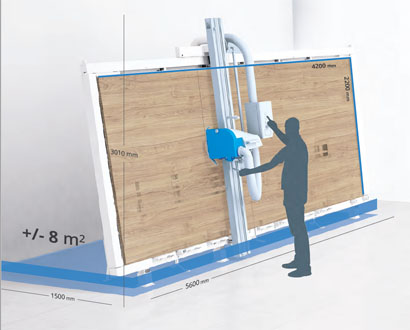

- Max. length of cut : mm 4200
- Max. height of cut : mm 2200
- Max. height of horizontal cut : mm 2080
- Max. depth of cut : mm 60
- Motor output : HP 5 (3.7 Kw)
- Blade diameter : mm 250
- Blade speed : rpm 5300
