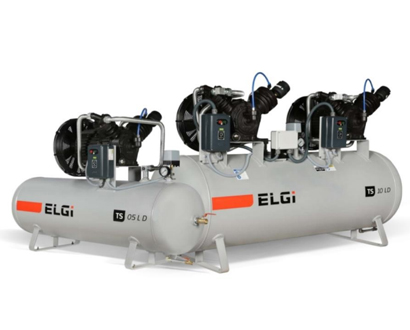

ELGI AIR COMPRESSOR MODEL TS10 LD-12 TM-220 LTR
₹142,500.00 ₹178,125.00
Available on Request
TECHNICAL SPECIFICATIONS:
- Power : 7.5 kW (10HP)
- Number of Stages : Two Stage
- RECEIVER (CAPACITY) : 500 LTR
- NOISE LEVEL : 70-75 dB (A)
- M.W.P (Kg/cm2) : 12 kg/cm2
- P.D (CFM) : 39 CFM
- FAD (CFM) : 32 CFM @ 10 Bar
- Starter : DOL (Direct On Line)
- Cooling Type : Air Cooled
- Compressor Oil 3 Ltr
Main motor (nominal rating)
- 3.7 +3.7 kW (SF 1.1Intrmittent)
- IE2, 6 Pole Sq. cage induction
- TEFC motor
- suitable for operation on 415 V, 3ph., 50 Hz AC supply
- F class insulation with IP55 deg. of protection.
