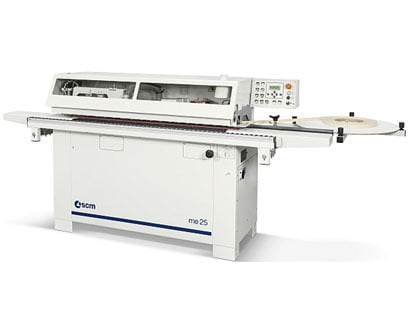

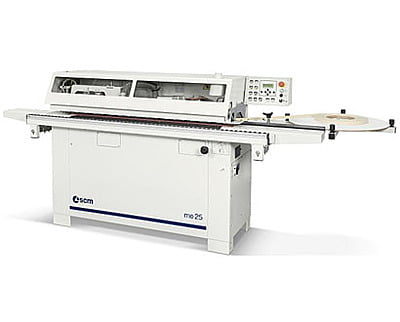

SCM Automatic Edge Bander ME25
₹1,200,000.00 ₹1,500,000.00
OPERATING UNITS
- GLUE POT UNIT, EDGE LOADING AND PRESSING SYSTEM
- END CUTTING UNIT
- SUPERPOSED TRIMMING UNIT
- EDGE SCRAPING UNIT
- BRUSHING UNIT
STANDARD EQUIPMENT:
- Control panel on machine infeed side
- Machine frame made of high rigidity ribbed steel to guarantee an excellent support for the operating units
- Top thick steel pressure beam with rubber coated wheels
- Exclusive feed truck
- Manual adjustment of top beam with automatic positioning of the operating units according to the selected panel t
thickness
- Numeric indicator of the selected panel thickness
- Glue smokes specific exhaust outlet; centralized extraction of the other dusts
- Panel support roller which can be extended on the entire length of the machine
- Safety enclosure
- Electrical cabinet with PLC, padlockable main switch and overload protection
- Emergency push buttons
TECHNICAL DATA:
- worktable dimensions [mm] : 2600 x 530
- worktable height [mm] : 904
- thickness of rolled edges [mm] : 0,4 - 3
- thickness of edges in strips [mm] : up to 5
- min.- max. panel height [mm] : 12 � 50
- min.- max. panel height using edge scraping unit [mm] : 16 - 50
- min. panel length/width with rolled edges [mm] : 190/65
- min. panel length cut only on the front [mm] : 120
- feed speed [m/min] : 7
- feed motor power [kW] : 0,75
- pneumatic operating pressure [bar] : 6,5
- exhaust outlet diameter (base) [mm] : 120
- exhaust outlet diameter (glue pot) [mm] : 60
- operating temperature [�C] : 20 - 190
