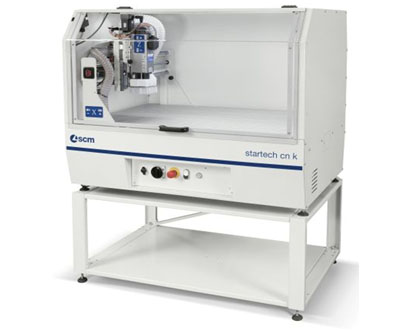

SCM Compact machining centre STARTECH CN K

TECHNICAL SPECIFICATIONS WORK TABLE - Work table dimensions [mm ] : 1170 x 760 - "T" grooves dimensions [mm] : 13.5 x 7 opening 8,5 for passage of M8 screw or nut AXES - X-Y-Z strokes [mm] : 915-610-176 (36-24-6.9 inch) - Z work piece clearance [mm] : 160(6,3 inch) - X-Y-Z maximum axis stroke [m/min] : 5-5-2.5 - Minimum distance of the spindle ring from the work table [mm] : 10 - Axes positioning precision [mm] : +/- 0.05 ELECTROSPINDLE - Hiteco electro spindle motor power [kW] : 2.4 S6 a 300Hz - Maximum rotating speed [rpm] : 24000 - Tool chuck : R25 TOOLS - Maximum tool holder diameter [mm] : 16 - Maximum tool diameter [mm] : 60 INSTALLATION - Power supply [V (Hz)] : 230 (50/60) Single-phase - Rated current [A] : 16 - Extraction air consumption [m3/h] : 115 - Exhaust air speed [m/s] : 20 - Exhaust outlet diameter [mm] : 40 - Compressed air consumption (only with pneumatic suction cups option) [Nl/min] : 120 - Pneumatic system operating pressure (only with pneumatic suction cups option) [bar] : 6.5 CONFIGURATION - N.1 : C.E. safety norms - N.1 : startech cn k - CE version - N.1 : Voltage 230 EU - N.1 : Frequency 50 hz - N.1 : Kit of 5 pneumatic suction cups that can be positioned on the work table - N.1 : Tool height detection sensor - N.1 : 4th interpolating axis (lathe processing) that can be positioned on the work table - N.1 : Side extensions - N.1 : Ulteriroe imballo per estensioni - N.1 : imballo - N.1 : Machine language: ENGLISH
