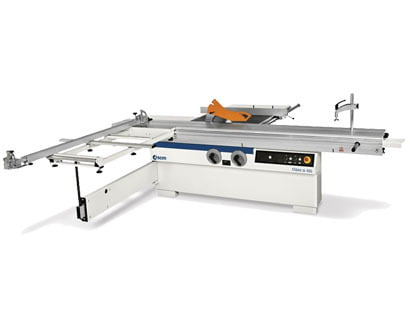

SCM Circular Saw / Panel Saw Class SI300 With Tilting Blade CLASS-SI-300-(R00610)

Optimizer/Sequencer App for Tablet: SCM Thundercut:

- Application to be downloaded from the App Store or Paly Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems.

- It can be activated using the QR code supplied with the machine.

The App allows to:

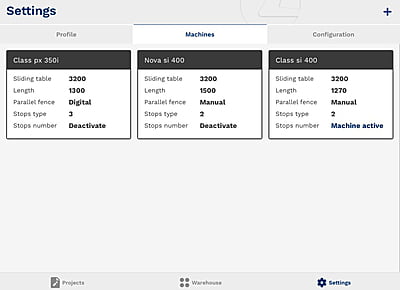

* manage your machine stock and the material and panel magazine

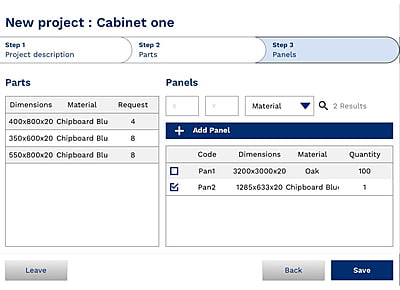

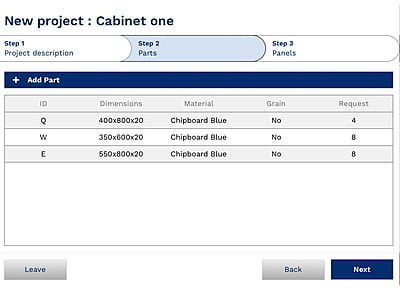

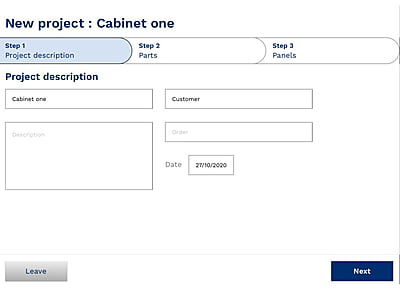

* create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists

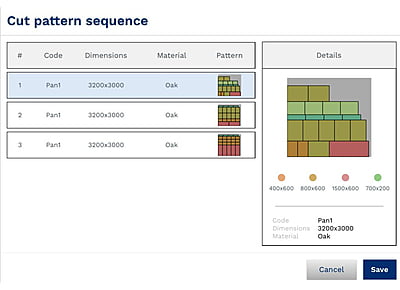

* optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App.

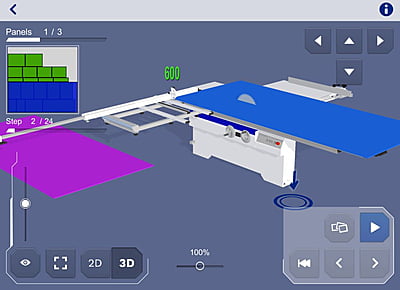

* set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step.

* print labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers.

- Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt

- Anodized aluminium alloy sliding carriage on high precision "arch-formed" hardened steel guides, which are fixed on the carriage by means of mechanical bending system

- Eccentric clamp

- Squaring frame the fast fence positioning of angular cuttings

- Outfeed table extensions

- Sliding carriage length 3200 mm

- Manual parallel fence with position readout on metric rule, sliding system on 40mm steel bar and micrometric adjustment

- Direct start main motor with pushbuttons

- Independent powered scoring unit external setting up and stops for a quick re-positioning of the blade

- Max cutting height at 90� (mm) : 100 with blade 315mm

- Max cutting height at 45� (mm) : 70 with blade 315mm

- Blade tilt (degrees) : 45

- Blades lifting and tilt : manual

- Main blade rotating speed (rpm) : 4000

- Scoring unit rotating speed (rpm) : 8500

- Saw unit motor power (S6 -40%) kW (HP) 50Hz : 5 (7)

- Scoring unit motor power (S6 -40%) kW (HP) 50Hz : 1,3 (1,7)

- with 3200 carriage (mm) : 3200x3200

- Cutting width on parallel fence (mm) : 1270

- Exhaust outlet diameter: :

- at the base (mm) : 120

- on overhead protection (mm) : 100

- on riving knife (mm) : 60

- Basic machine net weight (kg) : 1050
