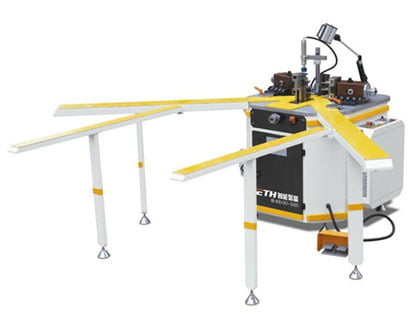

Heavy Duty Single Head Corner Crimping Machine
₹650,000.00 ₹812,500.00
Available on Request
TECHNICAL SPECIFICATIONS:
- Power supply : 380V/50Hz
- Total motor power : 3.0kW
- Rated pressure : 20MPa
- Operating pressure : 0.6 to 0.8MPa
- Air consumption : 5L/min
- Front positioning stroke : 170mm
- Backward cutter stroke : 120mm
- Adjustment range of front positioning : 140mm
- Adjustment range of angle cutter : 160mm
- Height of machined profile : 160mm
- Fuel tank capacity : 40L
- Oil pump size : 10"
- Overall dimension : 870?1200?1100mm
- Weight : 700kg
