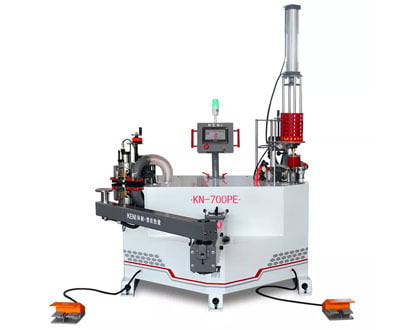

Edge Banding with Trimmer KN-700PE
₹1,175,000.00 ₹1,468,750.00
Available on Request
FEATURES:
- High precision Laser Sensor
- High capacity glue pot
- Intelligent speed control Servo Motor
- Border Sensor for Auto adjustment of trimming speed
TECHNICAL PARAMETERS:
- total power :7KW
- voltage : 400 V / 50 HZ / 3 PHASE
- board shape : line and curve shape board
- board size : 1.2*2.4m
- thickness of edge banding : 0.8-3mm
- edgeband width : 14 - 70mm
- min inner arc radius : 20mm
- temperature : 110C - 200C
- technics : laser band break
- edge banding speed : 0-37cm/s
- Panel Feed Speed(m/min): : 22m/min
- material of edge banding : ABS, PVC, melamine, plastic edge banding
- folding arm length : 2270mm
- certification : CE
- Dimension(L*W*H): : 2020X1470X1440
- Weight (KG): : 770 kg
INCLUDES:
- Additional glue pot on top
- Laser Ranging
- Border Sensor
- Anti Adheson Nozzle
- Profile Scrapping
- Glue quantity control
