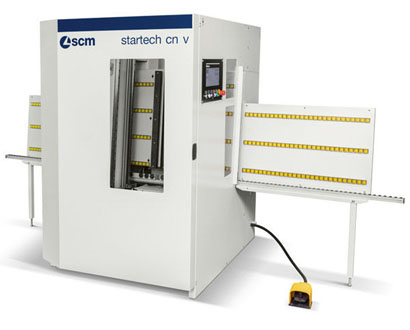

Scm Universal Nc Drilling And Grooving Machine (R005402)
GENERAL FEATURES
CNC universal drilling machine with fixed work table and mobile workpiece.
It is capable to carry out the following operations:
- vertical drilling on the panel surface
- horizontal drilling on all 4 sides
- grooving with integrated disc cutter along ?X? axis
Base and working table
structure made of tubular welded steel to create a large support surface, on which the work tables are fixed. Electrical cabinet integrated in the base. Work table made of phenolic material with grooves to allow the through drilling.
Mobile upright:
The gantrystructure is made of tubular welded steel which supports the main operating group.
F11 drilling head
It includes:
- no. 7 independent vertical spindles
- attachment for bits: 10 mm diameter
- centre-to-centre distance between spindles: 32 mm
- no.4 horizontal drilling heads, 1 +1 along X (10mm attachment for bits), 1 + 1 in Y (10mm attachment for bits)
- rotation speed: 4.460 rpm
- no. 1 integrated blade along X axis (125 mm max. diameter)
- blade rotation speed: 5.700 rpm
- 2,2 kW motor power
- horizontal pneumatic drilling stroke along X axis: 45 mm
Movement of wor kpiece and operating group
A clamp, directly controlled from the NC, locks the panel to be processed and positions it in sequence under the operating head to execute the requested machining
Sliding along "X", "Y" and "Z" axes of prismatic linear guides with recirculating ball bearings and transmission through recirculating ball screws.
Group positioning and machine motion is carried out by means of direct current motors.
NC CONTROL UNIT
Control Unit designed for drilling machines
NC
- 10" LCD colour display with touch-screen function
- selfdiagnosis and signalling of possible errors or damages in the user's language
Programming
- programming by NC
- automatic optimisation of drilling cycles
- possibility of panel origin change
- possibility to save and import of drilling programs by means of USB key
- possibility to import drilling programs carried out by CAD/CAM external software
Configuration
- operator interface in the same language of the users manual;
- machining head graphic configuration;
SAFETY REGULATIONS
Machine in conformity with the standard safety regulations according to the countries of machine destination.
NOTE
It is forbidden to work panels with features that are not included in the indicated dimensions.
The machine can work only rectangular panels, whose long side has to be positioned in the ?X? direction of the working coordinates.
Working on pieces with particular profiles have to be evaluated during the contract stipulation.
TOOL FEATURES
- horizontal drilling in ?X?, up to 11 mm minimum quota in Y
- blade cutting up to 100 mm minimum quota in ?Y?, on the panel lower side,
- 25 mm maximum horizontal drilling depth with reference to the panel surface (upper surface), without possibility to exceed the work piece maximum thickness with the bit
- 6 mm minimum horizontal drilling depth with reference to the panel surface (lower surface)
- integrated blade unit with:
* Tool attachment = 20 mm drill
* blade = 125 mm maximum diameter; 6 mm maximum thickness
