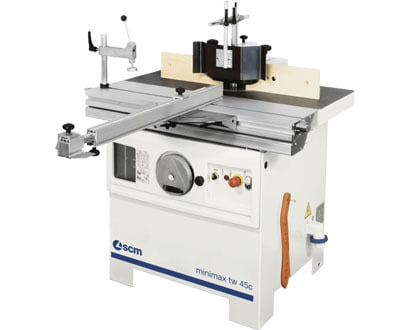

Scm Spindle Moulder With Movable Spindle - Tw 45C (R018801)
₹525,000.00 ₹656,250.00
MACHINE CONFIGURATION
- Extruded anodized aluminium sliding table (dimensions 270 x 125 x 1000 mm)
sliding on high precision hardened steel guideways complete with:
support table (angular cutting device) with telescopic fence with 2 retractable stops
- Adjustable spindle moulder fence with micrometric adjustment complete with
vertical and horizontal pressers
- Controls on machine front
- Tilting spindle 90? - 45?
- Spindle moulder fence with 3 controlled adjustments max. tool Dia. 210 mm
- Anodized aluminium tables for spindle moulder fence
- Interchangeable spindle Max. height 90 mm
- Spare spindle for router bits
- Spindle moulder shaft of 30 mm diam.
- Locking by countersunk socket screw
TECHNICAl SPECIFICATIONS
- max. useful spindle length [mm] : 108*
- spindle moulder speeds (at 50 Hz) [rpm] : 3500/6000/8000/10.000
- max. tool diameter when profiling [mm] : 210
- max. diam. of tool lowered under the table at 90? [mm] :180
- three-phase motors S6 : 5kW (6,6hp) 50Hz
- exhaust outlets diameter : [mm] : 120
