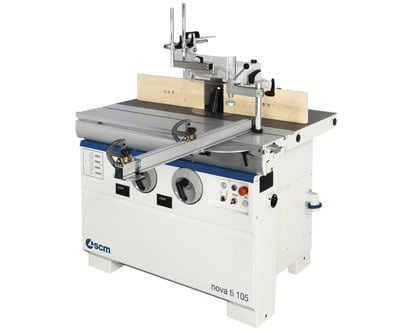

SCM Spindle Moulder Nova TI 105 Tilting Spindle R036001

STANDARD EQUIPMENT AND DEVICES : - Manual tool-holder shaft lifting, complete with a mechanical readout of working height - Manual tool-holder shaft lifting, complete with a mechanical readout of working angle - Fixed spindle moulder (version with electrical protections) with exhaust hood (240 mm max. tool diameter) - 3500/6000/8000/10000 rpm, 50Hz spindle speed - 4000/7000/9000/12000 rpm, 60Hz spindle speed - Electric speed display dial - Motor power 5,5kW 50Hz (6,6kW 60Hz) direct motor start: [S1] : 4kW 5,5HP 50Hz [S6 -40%] : 5,5kW 7,5HP - Reverse spindle rotation electrical interlocking for reverse operation - "PS" version with front aluminium carriage, 1200 mm - Adjustable fence with wooden tables (version with electrical protections) - Aluminium tables instead of wooden tables for fence - Interchangeable spindle - Spare spindle for interchangeable spindle, 125 mm length each - Spare spindle for router bits each - Spindle moulder shaft of 30 mm diam. - Locking by countersunk socket screw - albero ricambio diam. 30 mm - lunghezza 125 mm - Wood blocks - Machine language: ENGLISH TECHNICAL FEATURES: - Worktable dimension [mm] : 1200x855 - (with carriage as optional device) : (1200x530) - Spindle moulder shaft tilting Deg. : 0 +45 - Spindle moulder shaft height diam. 30-35 (40-50) [mm] : 125 (125) - Spindle base projection from worktable [mm] : 2 - Spindle base projection from worktable with interchangeable spindle [mm] : 38 - Max. tool diameter retractable under worktable (45Deg.) [mm] : 240x80 (150x80) - External diameter of exhaust outlet (spindle moulder hood) [mm] : 120 Safety/Protections - Emergency pushbutton - Safety microswitch on the motor access door - Padlockable main switch - Overload switch protection - Auxiliary low voltage circuit (110 volts) - Mechanical brake on the main motor (version with electrical protections)
