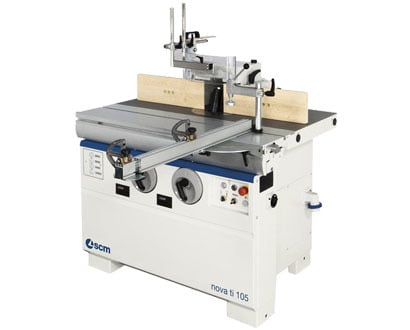

SCM Spindle Moulder Nova TI 105 Tilting Spindle (R030901)

- Manual tool-holder shaft lifting, complete with a mechanical readout of working height

- Manual tool-holder shaft lifting, complete with a mechanical readout of working angle

- Fixed spindle moulder (version with electrical protections) with exhaust hood (240 mm max. tool diameter)

- 3500/6000/8000/10000 rpm, 50Hz spindle speed

- 4000/7000/9000/12000 rpm, 60Hz spindle speed

- Electric speed display dial

- Motor power 5,5kW 50Hz (6,6kW 60Hz) direct motor start:

[S1] : 4kW 5,5HP 50Hz

[S6 -40%] : 5,5kW 7,5HP

- Reverse spindle rotation electrical interlocking for reverse operation

- PS version with a front aluminium carriage, 1200 mm

- Adjustable fence with wooden tables (version with electrical protections)

- Aluminium tables instead of wooden tables for fence

- Interchangeable spindle

- Spare spindle

- Spare spindle for interchangeable spindle, 125 mm length each

- Spare spindle for router bits each

- Spindle moulder shaft of 30 mm diam.

- Locking by countersunk socket screw

- Spare spindle diam. 30 mm

- spare shaft diam. 30 mm - length 125 mm

- Wood blocks

- Machine Language : ENGLISH

- Worktable dimension [mm] : 1200x855

- (with carriage as optional device)  : (1200x530)

- Spindle moulder shaft tilting  : 0? +45?

- Spindle moulder shaft height diam. 30-35 (40-50) [mm] : 125 (125)

- Spindle base projection from worktable [mm] : 2

- Spindle base projection from worktable with interchangeable spindle [mm] : 38

- Max. tool diameter retractable under worktable  (45?) [mm] : 240x80 (150x80)

- External diameter of exhaust outlet (spindle moulder hood) [mm] : 120

- Emergency pushbutton

- Safety microswitch on the motor access door

- Padlockable main switch

- Overload switch protection

- Auxiliary low voltage circuit (110 volts)

- Mechanical brake on the main motor (version with electrical protections)
