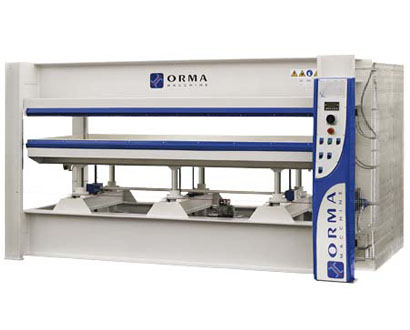

Orma HOT HYDRAULIC PRESS [3700x1300 | 160T | 1 Daylight]
₹4,450,000.00 ₹5,562,500.00
Available on Request
TECHNICAL SPECIFICATION
- Press platen dimension : 3700x1300 mm
- Max. total thrust : 160 T
- Specific pressure over 80% of the platen surface : 4.2 Kg/cm???? (approx)
- Pressing pistons : N 8 ?????? 85 mm stroke 450 mm.
- Movable platen : LOWER (upstroke design)
- Opening : 450 mm
- Loading side : 3700 mm
- Platen : Fabricated Steel Platens (Aluminium Covered)
- Daylight : 1
- Heating system with electric heater for thermal oil
- Max. liquid temperature 130 ????C
- Electric exclusion of one couple of pistons
- Perimetral control by sensors
Specifications
Presses Specifications
- Tons160Tons
- Platen Size3700x1300mm
- Daylight1
- Working Thickness450 mm
