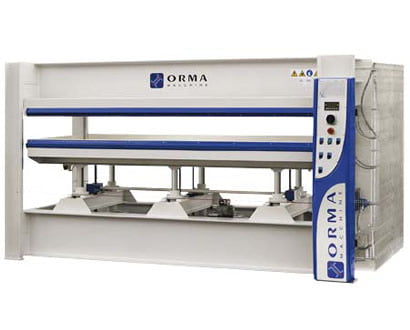

Orma Hot Press NPC Digit 6/95 [3000x1300mm | 90T | 400mm | 1 Daylight]

TECHNICAL DATA:

- Press platen dimension : 3000x1300 mm

- Platen Type : Fabricated Steel Platens (Aluminium Covered)

- Max. total thrust : 90 T

- Specific pressure over 80% of the platen surface : 2.4 Kg/cm2 (approx.)

- Pressing pistons No./ Dia. : 6 /70 mm stroke 400 mm

- Movable platen : LOWER (upstroke design)

- Opening : 400 mm

- Loading side : 3000 mm

- Heating system with electric heater for thermal oil : 18kw

- Voltage : 400/3/50Hz

Regulation:

ORMAMACCHINE spa declares that the machines supplied are not CE marked,

but are built in compliance with EN ISO 12100 safety of machinery, UNI EN 61439- 1

Electrical panels of machines and CEI EN 60204-1 Electrical equipment of

machines regulations.

Exclusions:

- machinery and material unloading c/o the Customer place;

- support staff for our technician during installation/commissioning;

- possible digging, masonry and painting by the customer;

- electrical, pneumatic and hydraulic connections to the Customer main supplies;

- electrical connections to machinery not supplied by us;

- anything not specified in the offer.
