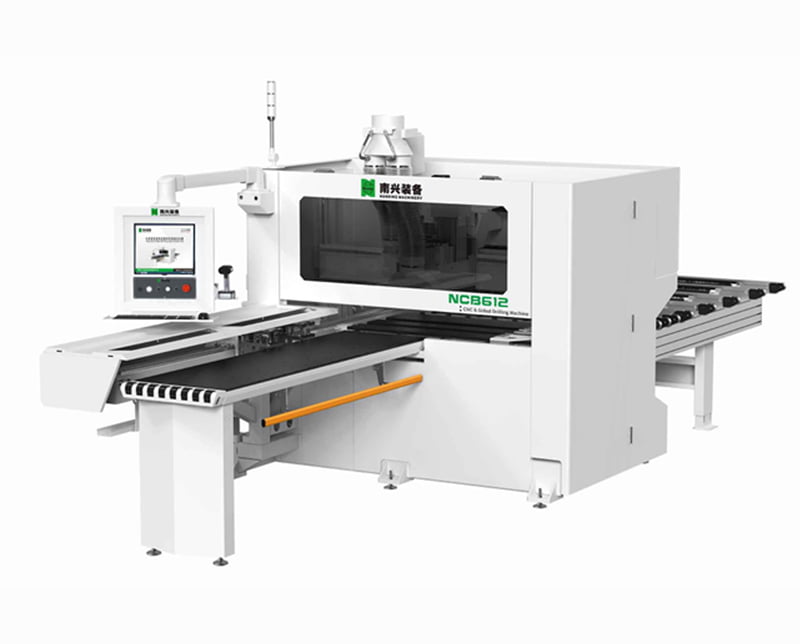

Nanxing CNC 6-sided Drilling Machine + saw blade NCB612S
₹3,850,000.00 ₹4,812,500.00
Warranty
12 Months Country of origin
China YouTube Video 1
https://youtu.be/4zN4AX_Q5NQ?si=zZ-nvUBVLuN7rVwg GST Extra
18% High technology compact machine making possible to drill holes on 6 sides, groove top and bottom, route shapes in one process without necessary of turning panel. Continuous working for various batch sizes and patterns to fit complex production. High accuracy and processing effective, basically no complaints.
Long guiding rail with dual clampers for fast processing work of various work pieces.
Easy production management due to self-recording function. Automatic detection of panel size reducing man made mistakes. Adjustment of panel position by best compensation automatically to suit furniture assembly process. Open port for international popular software, compatible with many file formats like xml, mpr etc.
Choosing from powered or simple roller conveyor for feeding in and out of panel to form a production line based on requirements.
FEATURES
- Long clamp beam & fast clamps 5.5 mtr
- Infeed air float table standard with sir blower
- Choise of Feed-in & out in front side or feed-in in front and feed-out in back.
- Dual clamper Side aligner
- Stopper
- Support Plates
- Accurate movement of each axis X,Y,U Transported by inclined rack and pinion
- Accurate movement of Z Transported by Ball screw rod
- Servo motor for each axis
- Max travelling speed: X/U/Y/Z/V:135/135/75/30/30m/min
- Linear guiding rail and bearings can be greased automatically
- Board length detector
Top Drill block
- 3.5 Kw main spindle
- Vertical drills 18
- Horizontal drills: 6 in X direction; 4 in Y direction. 5000rmp rotating speed,
Independent grooving saw
- Motor:1.7KW*1
- Processing range 50 - 1200mm
- Groove Width 4 - 8 mm
Bottom drilling block
- 3.5 kw main spindle+ one boring block
- 9 vertical drills
- Collinear vertical drills of top and bottom drilling blocks
- Support plates
Quick change tool
Min. processing size
- Drilling block design and software can do drilling for narrow parts
- Panel length: 200-3000mm
- Panel width 30-1200mm
