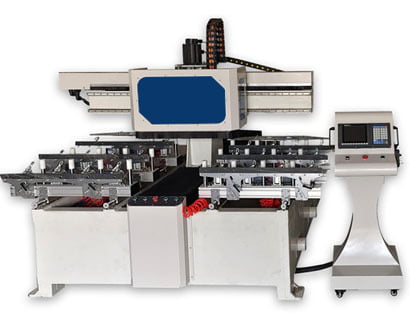

NC Mortiser Machine MSK1400-4A 1400 x 150 x 100mm, 3.5kW84 Air Cooled Spindle

FEATURES

- The structure of the body

   Design of high rigid body structure, and the material stress analysis and tempering

   treatment, to insure the accuracy of processing and assembling without deformation.

- Zhicheng Pneumatic(National high and new technology enterprises)

  It has the advantages of energy saving, pollution free, high efficiency, low cost, safe and

  reliable, simple structure and so on.

- Taiwan Hust CNC Control System With LED screen,the picture is clear.Large memory can

  output processing directly without gaiden.Operate by dialog mode which can change

  language freely between Chinese and English.

  The pictures of operation can change freely when using machine.Meanwhile,the

  making can subsequent process.

TECHNICAL DATA:

- X axis : 1400mm

- Y axis : 1600mm

- Z axis : 200mm

- Max working Length : 1400mm

- Maximum Width Of Working Material : 150mm

- Maximum Mortiser depth : 100mm

- Max Return speed : 40m/min

- Spindle speed : 18000rpm

- Spindle power : 3.5kw*4 air cooling spindle

- Air Pressure : 0.5 - 0.8mpa

- Spindle Wheelbase : 220mm

- Hand Wheel : With Handwheel simulation

- Motor and Driver : Taiwan Hust servo motor and Driver 2.0kw*1/1.5kw*1/1.2kw*1

- X,Y,Z structure : X,Y,Z Taiwan TBI ball screw

- Guide rail : Kaite high Precision linear guide

- Operating system : Taiwan Hust CNC Control System

- Inverter Hpmont : 15kw

- Cable Carrier : Highly flexible, silent, high-speed cable carrier

- Electrical system : Schneider Electric SA

- Working voltage : AC380V 3phase

- Overall size : 2500mm *2500mm*2000mm

- Gross weight : 1500KGS
