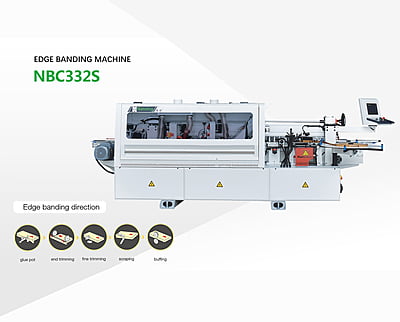

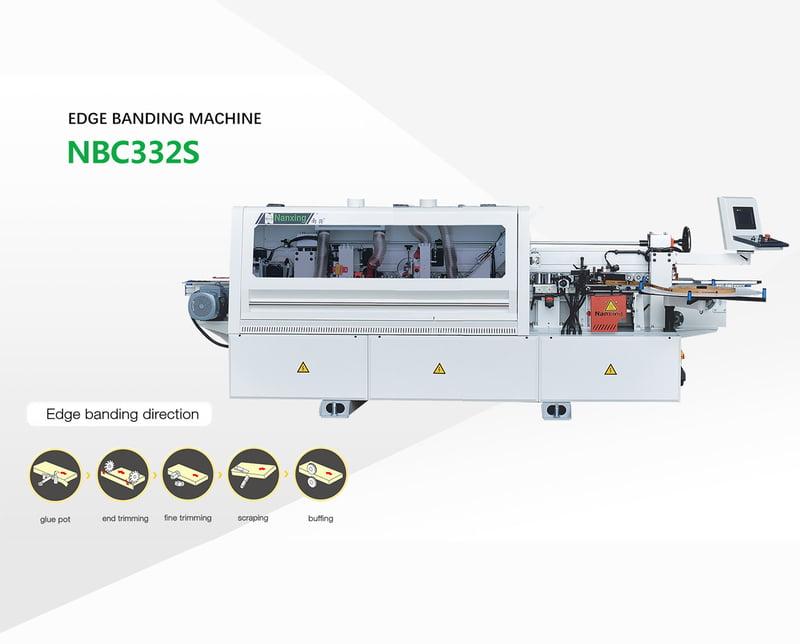

Nanxing Edge Banding Machine NBC332S
₹1,075,000.00 ₹1,343,750.00
Fast processing, save time, save space, simple operation, and save money.
Machine body and most mechanical machine parts are welded by robots and proceed by advanced CNC machines for higher stability and longer service life without deforming ;

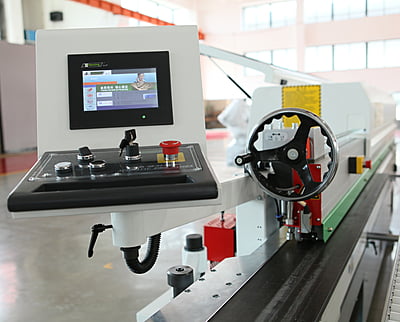

7�� touch screen. Operation interface is intuitive and simple.
Stand-by mode automatically turned on when machine stops working for a certain period (according to setting time) in order to save energy. Only one click to re-start production.
FEATURES:
- Gluing
- Snipping
- End trimming
- Fine trimming
- Scrapping
- Buffing
- 7" touch screen
- Stand-by mode
TECHNICAL DATA:
- Panel length: 120 mm
- Panel width: 60 mm
- Mini. Panel size: 120�60mm
- Panel thickness: 9-60 mm
- Edge tape thickness: 0.4-3 mm
- Feeding speed: 16/20/24m/min
- Power supply: 380 V; 50 Hz
- Air pressure required: 0.7MPa
- Operation system 7" touch screen
- Dust collector Dia. 125mm�2
- Total power: 10.8 kW
