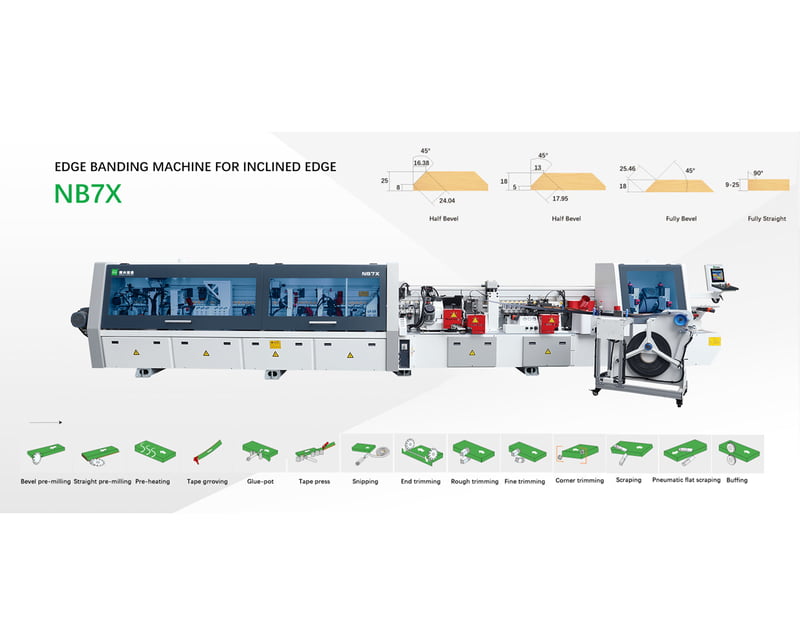

Nanxing Edge Banding Machine for Inclined Edge NB7X
₹4,200,000.00 ₹5,250,000.00
Warranty
12 Months Country of origin
China YouTube Video 1
https://youtu.be/rhd3UpuCHCs YouTube Video 2
https://youtu.be/kF32iK8l0xk GST Extra
18% Available on Request
A switch of a button can alternate between bevel and straight edges, with no additional setup time
or disruption to your operation. Featuring twin diamond cutters, twin glue station, plus a twin tape
coil magazine, the NB7X is brimming with features.
FEATURES
- Release agent sprayer
- Bevel edge milling
- Straight edge pre-milling
- Pre-heating
- Edge tape grooving device
- Straight edge gluing
- Bevel and straight gluing
- Hot air blowing gun (2pcs)
- Edge tape pressing
- Lubrication system
- End trimming
- Rough Trimming unit
- Fine trimming unit
- Corner trimming unit
- Profile scraping unit
- Flat scraping unit
- Clean agent spray
- Buffing
- Dust collection
- Safety device
- Feeding protector and thickness detection
- Interval feeding detection system
- E-STOP
- Remote Switch
- 10" Touch scrrn Control Syatem
- Energy saving Stand-by Mode
- Pre-melter gluing system
TECHNICAL DATA:
- Panel Length : 150mm
- Panel Width Incliend : 120mm
- Panel Width Straight : 150mm
- Edge tape thickness :0.4 - 2mm
- Feeding speed : 14/18m/min
- Min. panel size : 150�120mm
- Dust collector : Dia. 125mm�6
- Total power : 42kw
- Overall dimension : 9800 x 1050 x 1650 mm
- Net weight: : 3900kg
