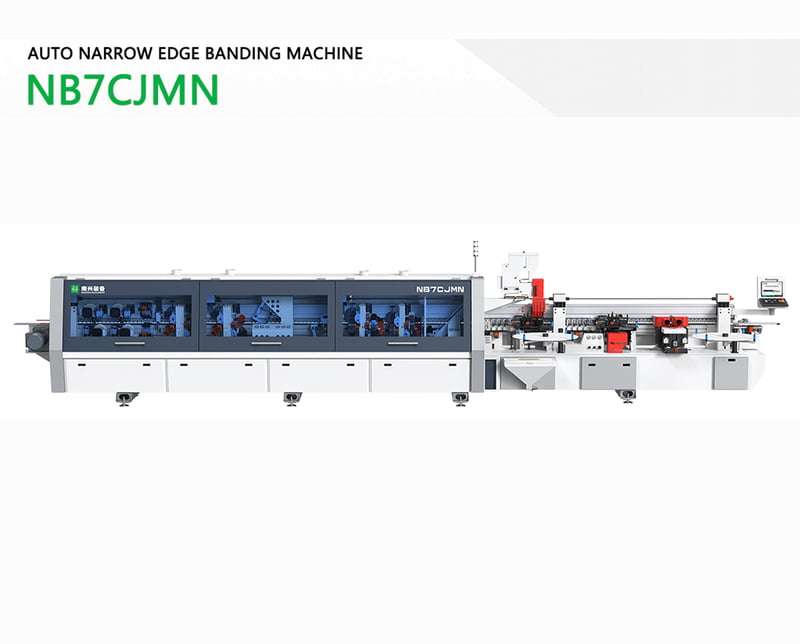

Nanxing Edge Banding Machine with 2 Premelts+ 2 Buffing NB7CJMN(2GP+2B)
₹4,300,000.00 ₹5,375,000.00
Warranty
12 Months Country of origin
China YouTube Video 1
https://youtu.be/9zBu3uzbvg4?si=l8AniInWkw4PBecc YouTube Video 2
https://youtu.be/bU_fSfTaw60?si=8LU2Ez5N6A-wtlLz GST Extra

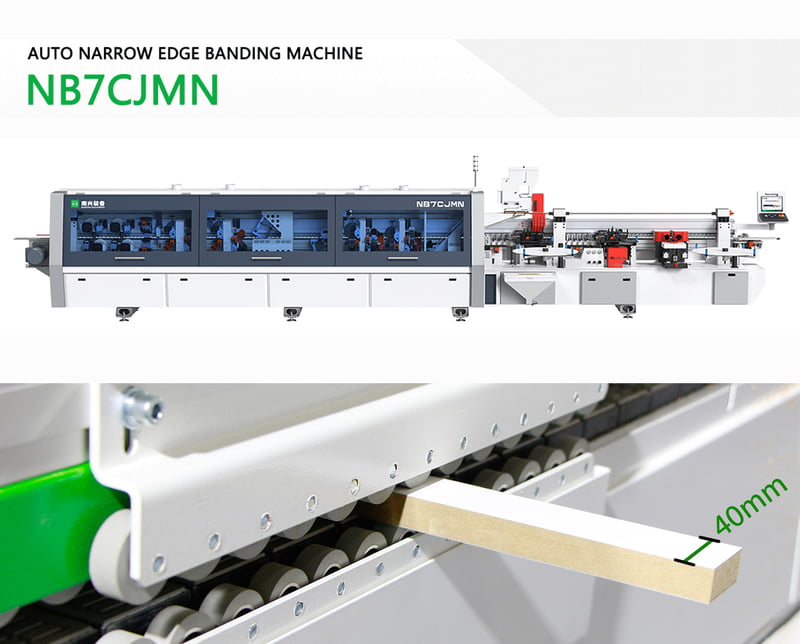

18% Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do edge banding work for min 40mm work piece in width.
Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements. Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits.
Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming
FEATURES
- Feeding assistance for narrow edge
- Spraying device (release+ clean agent)
- Pre-milling
- 2 sets of pre-heating
- Coil tape bracket*2
- Coil tape bracket*2
- Pre-melter gluing system*2
- Auto glue pumping + 25kg glue basin
- 2 sets of pressure rollers
- End cutting
- Auto lubrication system
- 2 sets of fine trimming units with pneumatic auto tool adjustment function
- Corner trimming unit
- 2 sets of scraping units with pneumatic moving back function
- Dust collector
- Off cut device and flat scraping
- 2 sets of buffing units
- Safety device Feeding protector and thickness detection
- Safety device Interval feeding detection system
- Safety device E-STOP
- Control system 10" touch screen
- Stand-by mode
- Production report
- Electric equipment PLC control, input voltage 380v, 50Hz (Standard).
- 30. Narrow workpiece solution
120x120 4 sides
200x40mm (long edge)
40x200 (short edge)
TECHNICAL SPECIFICATIONS :
- Min Panel Thickness : 120x120 (4 Side)
- Narrow long edge : 200x40mm (long side)
- Narrow short edge : 40�200mm (short edge)
- Panel thickness (narrow edge Corner trim on) : less than or equal to 25mm
- Panel thickness : 9-60mm
- Edge tape thickness : 0.4-3mm
- Feed speed : 16/20/24m/min
- Feed speed(narrow edge Corner trim on) : 16m/min
- Dust extraction Dia. : 125mm�6
- Total power : 33.7kw
- Overall dimension : 9800�1050�1650mm
