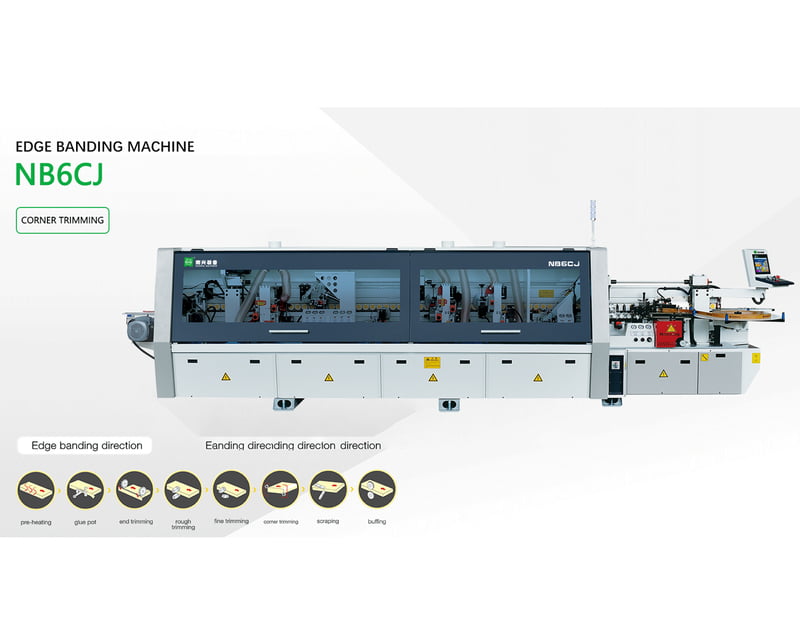

Nanxing Edge Banding Machine NB6CJ
₹2,625,000.00 ₹3,281,250.00
Nanxing NB6CJ Edge Banding Machine: Industrial Strength for Flawless Edges (Up to 24m/min)
Achieve superior edge banding results with the Nanxing NB6CJ, a heavy-duty automatic edge banding machine. Ideal for furniture makers seeking industrial productivity, the NB6CJ boasts a maximum feeding speed of 24 meters per minute. This feature-rich machine offers pre-heating for optimal glue adhesion, corner rounding for a polished look, and automatic standby for energy savings.
FEATURES:
- Pre Heating
- Gluepot
- Edge Tape Supporter
- Snipping End Cutting
- Pressure Rollers
- Lubrication System
- End Trimming
- Rough Trimming
- Fine Trimming R1.5 Cutter
- Cornor Trimming R1.5 Cuttter
- Scrapping R1.5 Cutter
- Buffing
- Dust Collection
- Feeding Protector Safety Device
- E-Stop
- Start Stop Switch
- Remote switch & Indicator light
- 10" Controll System
- Energy Saving quick start/stop in one click
- Daily Production Report
TECHNICAL SPECIFICATIONS
- Mini. Panel size : 120x80mm
- Panel thickness : 9-60 mm
- Edge tape thickness : 0.4 - 3 mm
- Feeding speed : 16/20/24 m/min
- Power supply : 380 V; 50 Hz
- Air pressure required : 0.7MPa
- Operation system : 7�� touch screen
- Dust collector Dia.x N : 125mmx3
- Total power : 16.3 Kw
- Approx. weight : 2430 kg
- Overall dimension : 6650*1450*1650 mm
