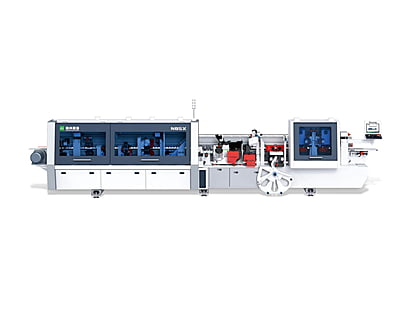

Nanxing Edge Banding Machine NB5X-2PUR for Straight & Inclined Edges

With the NB5X you can create on trend cabinets with a �finger pull� profile design. This eliminates the

need for additional hardware such as handles. Create angled or inclined edging with twin

diamond cutters and twin glue station.

- Spraying device (release + clean agent)

- Bevel edge milling

- Straight edge pre-milling

- Pre-heating

- Edge tape grooving device

- Bevel and straight gluing each 1 No.

- Edge tape pressing

- Hot air blowing gun (2pcs)

- End trimming

- Rough Trimming unit

- Bottom Fine trimming unit

- Bottom Profile scraping unit

- Flat scraping unit

- Buffing

- Independent suction hood  Dia. 125mm x 6

- Control system 10�� touch screen

- Auto Stand-by mode according to setting time

- Production report

- PUR Glue System 2No.

Safety device

- Feeding protector and thickness detection

- Interval feeding detection system

- E-STOP

- Remote switch & Indicator light

TECHNICAL SPECIFICATIONS:

Panel length : 150mm

Panel width : 120mm

Min. panel size : 150 x 120mm

Panel thickness : 18-25mm

Edge tape thickness : 0.6-2mm (Full inclined)

Edge tape thickness : 0.6-2mm (half inclined)

Feeding speed : 16/14m/min

Dust collector Dia. : 125mm x 6

Total power : 33kw

Overall dimension : 7700�1050�1650mm

Net weight : 3000kg
