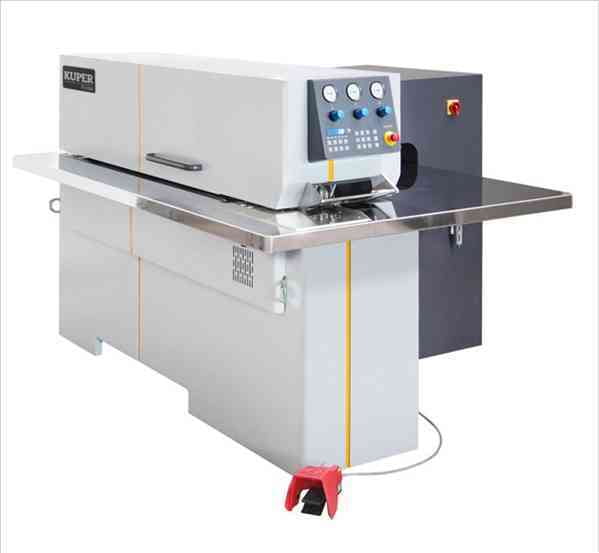

KUPER FLI VENEER SPLICING MACHINE - 5mm Veneer
₹8,550,000.00
Warranty
12 Months GST Extra
18% Available on Request
Includes
- 0164700 : KUPER FLI VENEER SPLICING MACHINE FLI 1000
- 0163920 : COMPACT COOLER FOR KUPER FLI 1000
- 0164838 : OPTIONAL THICK VENEER PACKAGE FOR VENEERS UP TO 5,0 MM
- Crate
TECHNICAL DATA :
- Throat depth: 1000 mm
- Veneer thickness*: up to 5,0 mm
- Veneer lengths: from approx. 300 mm
- Veneer strip widths: from approx. 35 mm
- Feed speed: infinitively variable from 5 - 55 m/min**
- Length of heating zone: 1425 mm
- Width of heating zone: 12 mm
- Operating voltage: 400 V, 50 cycl, 3 Ph + N + PE
- Total connected load: approx. 4,1 kVA
- Air consumption: approx. 5 NL/min
- Weight: approx. 1.500 kg
* subject to material tests and veneer species, possible with option packets for micro- and thick veneer ** only without option packets for micro- und thick veneer
- Standard accessories: Set of machine tools, 1 operating manual
