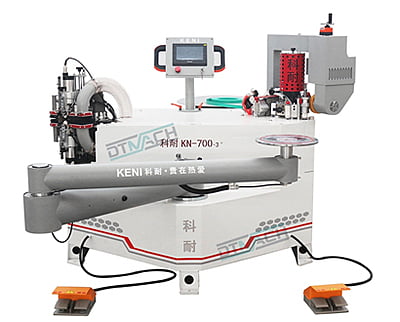

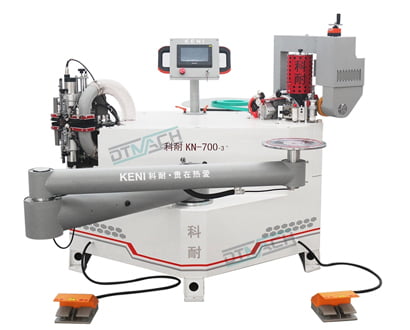

Edge Banding with Trimmer KN-700-3
₹850,000.00 ₹1,062,500.00
Available on Request
TECHNICAL PARAMETERS:
- total power :6.5 KW
- voltage : 400 V / 50 HZ / 3 PHASE
- air pressure : 0.6 - 08. Mpa
- air tank : 2L
STACKING ARM
- Total Length: 2250 mm
- Shape: Round
- Suction Cup: Dia. 300 mm & Dia. 140 mm
- Loading Capacity : max. 100 KG
Big Arm: Dia. 165 mm
- Small Arm: Dia. 114 mm
STRIP
- Material: PVC, ABS, Melamine, Veneer(customized)
- Width: 14-70 mm
- Thickness: 0.5-3 mm
BOARD SIZE
- Round: Dia. 2.4 m
- Rectangle: 1.2*2.4 m
- L shape: 1.4*1.6 m
GLUE POT
- Glue: PUR or EVA
- Volume: 2600 ml
- Position: TOP
- Gluing method: Single side
- Temperature: 110-210 Deg. C.
GLUEING
- Edge banding spees: 0-30 cm/s
- Minimum radius of inner arc: R="20" mm
HEATING
- Position can be adjusted
LASER RANGING
- Function: Laser ranging, precise docking
PRECISE DOCKING
- Docking Error: +/- 0.3 mm
- Requirement: Length 400 mm
CLEANING
- Cleaning Liquid: Water-based
TRIMMING
- Rotatable : +/- 15�
TRIMMING, SCRAPIMG, CLEANING
- Speed: 0-24 cm/s
- Trimming method: less than 14 mm,
- single trim 14-70 mm, double trim
CLEANING
- Two cleaning deivces
- Water-based cleaning liquid is recommended
