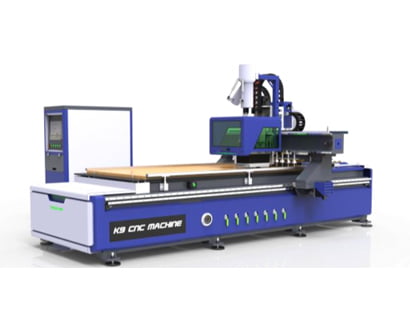

CNC ROUTER MACHINE K9 PTP ATC 1300 x 2800 x 300
₹2,550,000.00 ₹3,187,500.00
Available on Request
TECHNICAL DATA:
- Table Structure : PTP table 3 sets (With auxiliary loading + positioning + material top device)
- Working Size : 1300*2800*300m
- Control System : Taiwan Syntec 60CA control system
- Spindle : ATC HQD 9KW ATC air-cooled spindle and carousel auto tool change 12 pcs
- Inverter : FULING 11kw inverter
- Motor and Driver : Leadshine 1500W servo motor and driver
- Reducer : Japan SHIMPO reducer
- Pop up pins : 8 sets
- Rails : Taiwan HIWIN 30/25/25mm square linear guide rails
- Rack : 1.5M Helical rack gears transmission on XY axis
- Screw : Taiwan 3205 TBI ball screw on Z axis
- Control Cabinet : Independent control cabinet
- Lubrication : Auto lubrication
- Limit switch : Autonics Limit switch
- Electrical Components : Schneider electrical components
