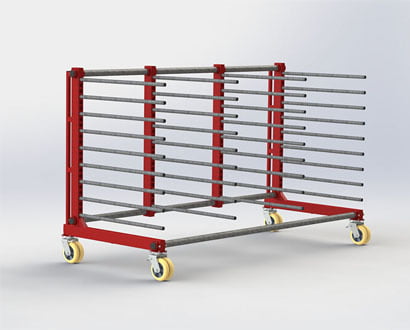

JOWI Quercus Mobile Rack with 7 levels

Technical Features: -Mobile Rack in frame construction equipped with zinced support tubes without cross tubes -3 L-shaped uprights with castors -2 continuously adjustable i-shaped uprights -0 cross tubes (for zincked tubes 2 Inch Nominal size 60,3 x 3,65 mm) -Please consider: The JOWI cross tube is reinforced at the tube end. -Tubes without reinforcement should protrude some centimeters to avoid a deformation of the tube end. -25 slots for support tubes per upright -7 levels (7 support tubes on 2 L-uprights and 2 i-uprights) Clearance 174 mm, diameter of the support tubes 34 mm, Working length of the support tubes 1080 mm -Plug-in system with locking screw for support tubes for adaption of clearance -Support tubes with zinc coated surface -4 heavy load double steering castors, ? 200 mm with ball bearings and cast polyurethane tread, 3 of which with brake -Max. load capacity on 1 support tube: 35 kg; on the whole rack: 1.500 kg -Maximum load for all i-uprights between 2 L-uprights: -up to 2 m distance between L-uprights: 750 kg -up to 3 m distance between L-uprights: 350 kg -Requirements: even load distribution, no shock loads -Length x Depth x Height: Length depending on the cross tube x 1.320 x 1.810 mm -Steel construction, varnishing: RAL 3004, purple red -Mobile rack for environmental temperatures up to 60?C -Net Weight: 198 kg
