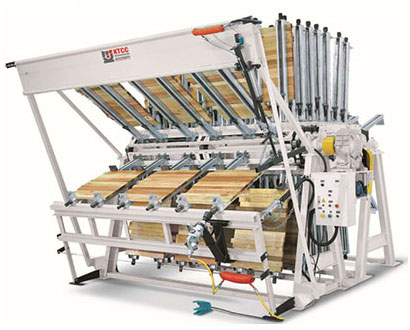

Semi-Auto Hydraulic Clamp Carrier KC-10850-100-1P
₹2,053,600.00 ₹2,567,000.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAL SPECIFICATIONS:
- Machine complete with sections
- Every section with 8 clamps, total 80 clamps
- Clamp depth: 50" / working depth: 400~1250mm
- Machine working high will be different by the clamp depth.
- Clamp jaw high: 90mm
- Machine working width: 100" / 2500mm
- Rotary drive motor: 1.5 kw x 1pc #900:1
- Pneumatic tightener: 1 Set
- The tightener system suits with a pneumatic device
which is lighter and faster, but the tighten pressure
could not accord with laminate pressure and cause
the unsettled processing quality, less lifespan with
the extra wastage.
- Top pneumatic panel flattener: 1 Set
