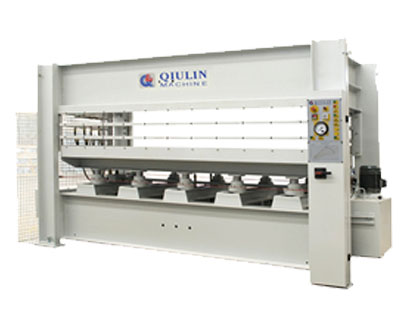

Hot Press Machine BY21X8/60(10)Z3C [2700x1370mm | 600T | Daylight 10]
₹10,650,000.00
Warranty
12 Months GST Extra
18% Available on Request
Total pressure ????? 6000KN
Specific pressure: 16.2Kgf/cm2
Working layer????? 10
Platen No.& Size????? 11-2700*1370*42mm
Platen opening????? 90mm
Cylinder No.& Dia????? 1-??????190mm???????4-??????240mm
Heating way????? The user prepare the heating source
Installation power????? 15.75KW
Platen opening way????? Automatically,three times release pressure
Loading way????? Length side,Manually
Voltage????? 3PE 415V 50Hz
Heating power: 144kW heating supply station
Heating way: Electric heated with thermal oil
Hot oil pump flow: 20m3/h
Hot oil pump head: 32m
Motor power of heat oil pump: 7.5kW
Specifications
Presses Specifications
- Tons600Tons
- Platen Size2700x1370
- Daylight10
- Working Thickness90mm
