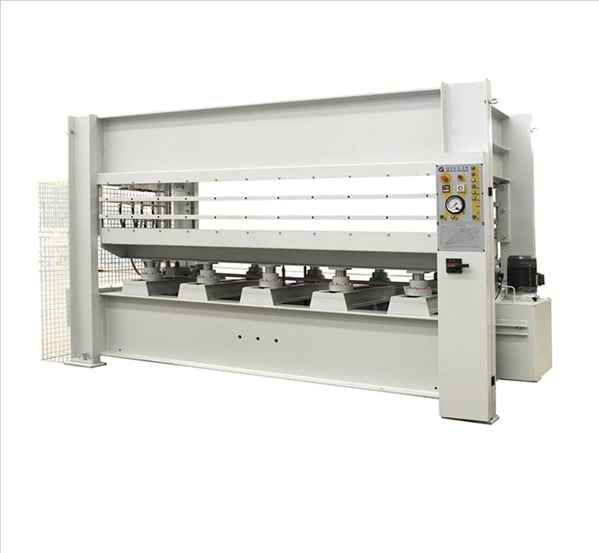

Hot Press Machine BY214-12/16(3)H1RC [3600x1300mm | 160T | Daylight 3]
₹4,875,000.00 ₹6,093,750.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAl DATA:
- Total pressure - 1600KN (160Ton)
- Specific pressure: 3.4Kgf/cm2
- Working layer - 3
- Platen No.& Size - 4-3600x1300x42mm
- Platen opening - 120mm
- Cylinder No.& Dia - 10-85mm
- Heating way - Eclectic heating with thermal oil
- Heating medium: Thermic oil
- Installation power - 77.5KW
- Platen opening way - Automatically
- Loading way - Length side,Manually
- Voltage - 3PE 415V 50Hz - Packing
- Knocked down to be properly packaged
- Weight: 12000kg
Specifications
Presses Specifications
- Tons160Tons
- Platen Size3600x1300mm
- Daylight3
- Working Thickness120 mm
