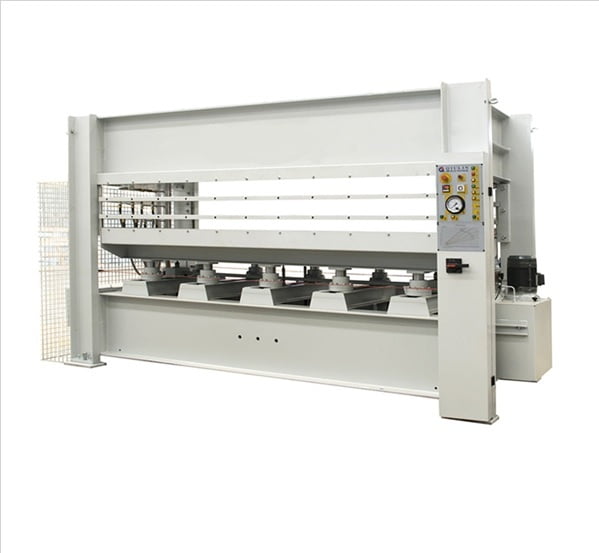

Hot Press Machine [ 3800x1500mm | 300T | Daylight 3]
₹7,750,000.00 ₹9,687,500.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAl DATA:
- Total pressure : 3000kN
- Working layer : 3
- Platen No.& size : 4-1500x3800x42mm
- Opening : 120mm
- No.&Dia of oil cylinders : 10- 125mm
- Storke : 360mm
- Loading way : three direction
- Closing speed : 39mm/s
- Rated pressure : 24.5MPa
- Gross weight : about 26.3t
- Voltage : three phase,415V,50HZ
- Installation power : 6.2+108+2.2 = 116.4kW
Specifications
Presses Specifications
- Tons300Tons
- Platen Size3800x1500mm
- Daylight3
- Working Thickness120 mm
