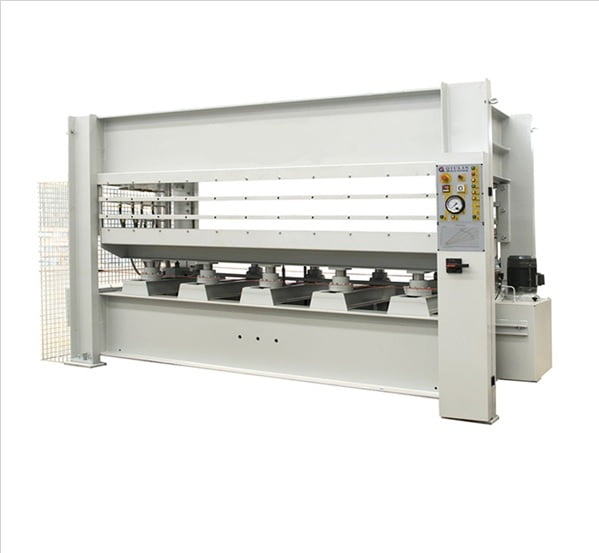

Hot Press Machine [2500x1300 | 120T| 3Layers]
₹3,300,000.00 ₹4,125,000.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAl SPECIFICATIONS
- Total Pressure : 1200 KN/120 ton
- Specific Pressure : 3.7kg/ cm2
- Working Layer : 3
- Platen : 4-2500 X 1300 X 42mm(solid steel drilled hot platen covered with mylar)
- Platen opening : 120mm
- Cylinder : 8Nos
- Cylinder Dia : 85mm
- Max Temp : 120Centigrade
- Heating Type : Electric Heating with Thermic Oil
- Installation Power : 4+0.75+48KW
- Platen Opening Way : Automatic
- Loading Way : Length side Manually
- Voltage : 3 ph 415 V 50 Hz
- Closing speed : 30mm/s
Specifications
Presses Specifications
- Tons120Tons
- Platen Size2500x1300mm
- Daylight3
- Working Thickness120 mm
