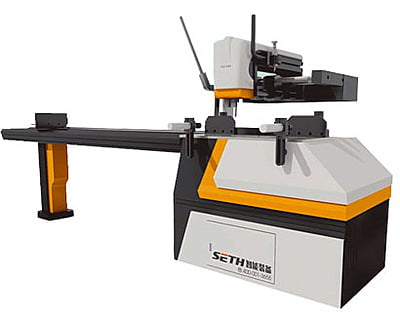

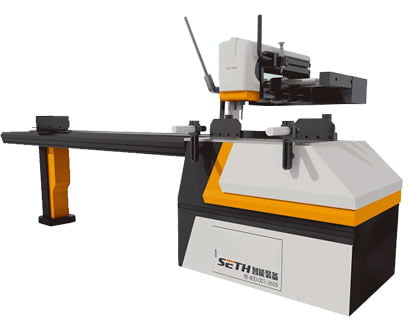

High speed spindle copy router drilling machine LJXG-300*200
₹250,000.00 ₹312,500.00
Available on Request
FEATURES: - It is suitable for copying all kinds of holes, tenons and grooves of aluminum profiles. - Precision machining of linear guide rail makes the milling cutter move stably and flexibly and operate easily. - The advanced milling cutter chuck is selected to match with the imported air-cooled integrated electric spindle, which makes the milling cutter clamping simple and convenient. - Excellent air-oil filter atomization cooling system makes milling effect better. TECHNICAL SPECIFICATIONS: - Power� : 2.20KW - Voltage : 380V/50HZ - Air pressure : 0.6-0.8MPa - Air consumption : 2L/min - Rotation rate : 18000r/min - Profile size� : 300*220 mm (W*H) - Miller size Dia. : 6,12mm - Milling range� : 100*300 mm - Dimension : 3000x800x1600 mm - Weight : 350kg
