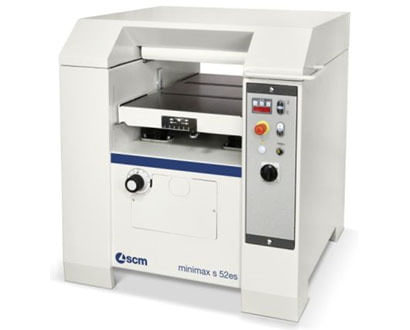

SCM Thicknessing Planer S-52ES (R004701)
₹800,000.00 ₹1,000,000.00
GENERAl SPECIFICATIONS:
- Thicknessing table lifting by means of 4 columns dust protected
- Powered vertical movement of the thicknessing table with digital readout
- Helicoidal thicknesser infeed roller
- Rubber-coated thicknesser outfeed roller
- Automatic star-delta start
- Three-phase motor S6-40% 7kW (9,5hp) 50Hz
- with automatic star-delta starter
- "Xylent" spiralknife cutterblock with 3 series of knives
- Machine language: ENGLISH
TECHNICAL SPECIFICATIONS:
- working width [mm] : 520
- cutter block diameter (mm)/no. of standard knives : 120/4
- standard knives dimensions [mm] : 520 x 30 x 3
- max. stock removal [mm] : 5
- thicknessing table dimensions [mm] : 520 x 850
- feed speed on thicknesser [m/min] : 5/8/12/18
- min. ?????? max. working height on thicknesser [mm] : 3 - 240
- min. working length on thicknesser [mm] : 220
- Other technical features: :
- three-phase motor -40% : 7kW (9,5hp) 50Hz
- exhaust outlet diameter [mm] : 120
