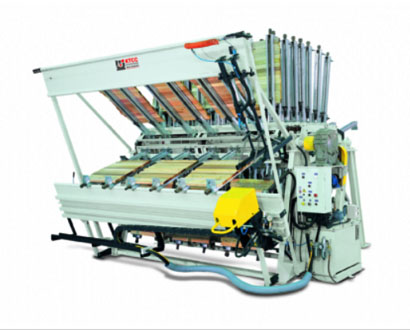

Semi-Auto Hydraulic Clamp Carrier KC-16850-100-1G
₹2,962,400.00 ₹3,703,000.00
Warranty
12 Months GST Extra
18% Available on Request
Characteristic:
1. Economize on power for manifesting the charming ratio of value and capability.
2. The secure structures with solid material offer the relieved partner in your production line.
3. KTCC also offer the lamination pressure knowledge with machine to learn with customers.
4. The section might take 6~8 mins for processing which depend on material size, glue type and operators.
Machine complete with 160 sections
- Every section with 8 clamps, total 128 clamps
- Clamp depth: 50" / working depth: 400~1250mm
- Machine working high will be different by the clamp depth.
- Clamp jaw high: 90mm
- Machine working width: 100" / 2500mm
- Rotary drive motor: 1.5kw x 1pc
- Hydraulic pump drive motor: 2.25kw x 1pc
- Pump could be set up the according laminate pressure for the hydraulic tightener system.
- Hydraulic tightener: 1 Set
- Hand-push to fit on the clamp.
- Top pneumatic panel flattener: 1 Set
