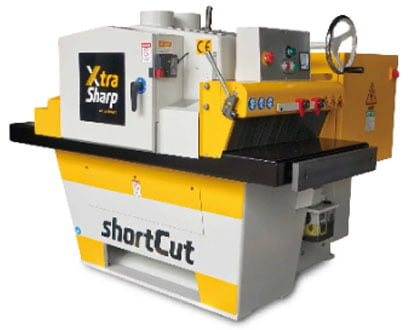

Shocut Multiple RIP Saw 30HP, 95mm Max Thickness
₹2,575,000.00 ₹3,218,750.00
Warranty
12 Months Country of origin
Taiwan GST Extra
18% Available on Request
STANDRD
- Top Saw Arbor
- 1x Saw Blade
- Laser Bracket
- 300mm Chain Conveyor
- Belt Drive Spindle
- 4x Pressure Rollers
- 3x Anti-kickback Fingers
- Manual Light Fence
- Automatic Lubrication
- Saw Sleeve with Set of Spacers incl.
- 0.25mm x8 ; 0.50mm x10 ; 1.0mm x18
- 10mm x4 ; 15mm x4 ; 25mm x3 ; 50mm x2
- 1 Long & 1 Short Pressure Plates
- Tool Kit
TECHNICAL DATA:
- Max. workpiece thickness Long Plate : 75mm
- Max. workpiece thickness Short Plate : 95mm
- Min. workpiece length Long Plate : 180mm
- Min. workpiece length Short Plate : 500mm
- Max. workpiece width : 680mm
- Feed chain width (Cutting range) : 300mm
- Table surface : 1700 x 700mm
- Table height : 750mm
- ressure roller / Dia. : 6pcs / Dia.62mm
- Max. Saw blade dia. x bore : Dia. 305 / 70mm
- Spindle speed : 3200rpm
- Feeding speed : 6.7 - 35m/min
- Spindle power : 30HP
- Feeding power : 2HP
- Dust collection hole x power : 2pcs / Dia. 152mm x 5-10HP
- Machine size (LxWxH) : 2020 x 1420 x 1330mm
- Packing size (LxWxH) : 1800 x 1530 x 1630mm
- N.W. / G.W. : 1520 / 1620kg
