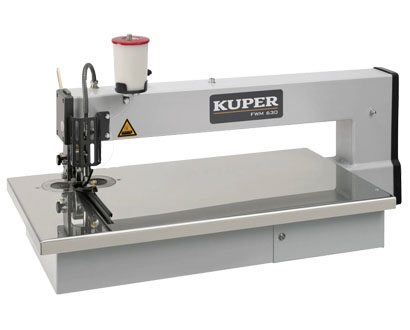

KUPER Zig-zag Veneer Splicing Machine (0,4 to 2,0 mm)

115034 - Veneer Splicing Machine (0,4 - 2,0 mm) 158990 - Recommended Initial Operation for FWM 630 Packaging FEATURES: - Very neat, very precise. - The KUPER FWM 630 is the ideal machine for smaller veneer quantities. - It features the technical advantages of all zig-zag machines made by KUPER: For example the discs with tolerance compensating mechanism. ADVANTAGES: - flexible location - simple operation - discs with tolerance compensating mechanism - 8-step switch for regulation of heating pow TECHNICAL DATA: - Throat depth : 630 mm - Feed speed : approx. 7 m/min. - Veneer thickness : approx. 0.4 - 2.0 mm - Operating voltage standard : 230 V, 1 Ph, 50/60 cycl. - Total connected load : approx. 0.11 kVA - Space required (l x w) : 890 x 365 x 500 mm
