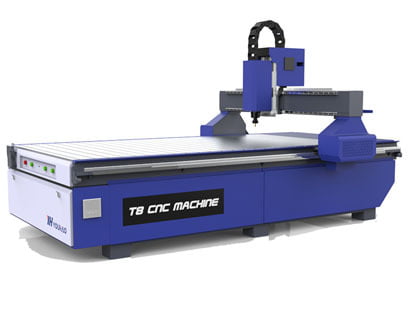

Flatbed CNC routing machines T8-1325 | 1300*2500*200 | 40 m/mm | Stepper Motor | 6.7 kW | T-Slot
₹1,775,000.00 ₹2,218,750.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
TECHNICAL SPECIFICATIONS:
- Machine Bed : Heavy duty machine bed
- Table : Aluminum T-slot
- spindle : HQD 3.5kw air-cooled spindle, ER25, 18000 rpm
- Inverter : Fuling 3.7 kw inverter
Tool Magazine : NA
- System : Richauto DSP A11 controller
- Motor : YAKO MS3 - Stepper motor and drive
- Reducer : Garing box 1.5M
- Rails : Taiwan HIWIN 25mm square linear guide rails
- Rack : 1.5M Helical rack gears transmission on XY axis
- Screw : Taiwan 2505 TBI ball screw on Z axis
- Lubrication : Auto lubrication
- Control Cabinet : Electric panel to be inside the machine.
- Electrical : Schneider electrical components
- Software : ALPHACAM/TYPE3/ARTCAM etc.
- Random tools : 9 pcs
- Other parts : 1 set
PARAMETERS:
- Working size : 1300*2500*200 mm
- MAX. speed : 40m/min
- Cutting speed : 15m/min
- Total power : 6.7KW
- Power supply : 220V 1Ph 50Hz (380V/3Ph/50Hz optional)
- Positioning accuracy : 0.03mm/300mm
- Repetitive positioning accuracy : 0.03mm
