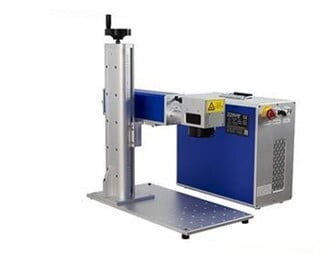

Fiber Laser Marking & Cutting 20W
₹370,000.00 ₹462,500.00
Available on Request
Technical Specifications: Technical Specifications: - Power : 10W / 20W/ 30W/ 50W/100 W - Laser Wavelength : 1064nm - Marking Area : 110mm*110mm - Marking Depth : (?)1mm - Marking Speed : 7000mm/s - Marking Depth : (?)1mm - Marking Speed : 7000mm/s - Minimum Line Width : 0.015mm - Minimum Character : 0.2mm - Repeated Precision : ?0.003mm - Life span of Fiber Laser Module : 100000 - 200000 hours - Beam Quality : M2 1.6 - Focus Spot Diameter : 0.01mm - Power Stability (8h) : ?1.5%rms - System Operation Environment : Windows XP / Windows 7 / Windows 8 - Cooling Mode : Air cooling Built-in - Working Temperature : 15?~35? - Voltage : 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH - Power Requirement : 400W - Computer Requested : There will be one PC with the machine - Dimension (L*W*H) : 650mm*210mm*550mm - Package Size : 850mm*410mm*750mm - Net Weight : 30KG - Gross Weight : 40KG
