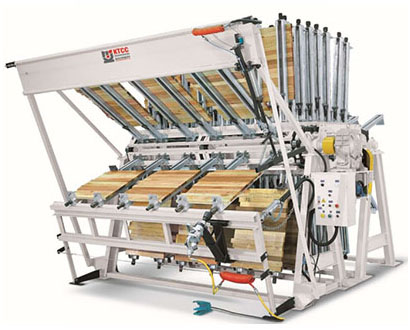

Semi-Auto Hydraulic Clamp Carrier KC-G
₹4,725,000.00 ₹5,906,250.00
Warranty
12 Months GST Extra
18% Available on Request
Machine complete with 20 sections - Every section with 8 clamps, total 160 clamps - Clamp depth: 50" / working depth: 400~1250mm - Machine working high will be different by the clamp depth. - Clamp jaw high: 90mm - Machine working width: 125" / 3100mm - Rotary drive motor: 1.5kw x 1pc - Hydraulic pump drive motor: 2.25kw x 1pc - Pump could be set up the according laminate pressure for the hydraulic tightener system. - Hydraulic tightener: 1 Set - Hand-push to fit on the clamp. - Top pneumatic panel flattener: 1 Set
