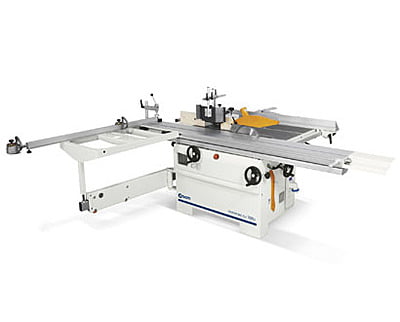

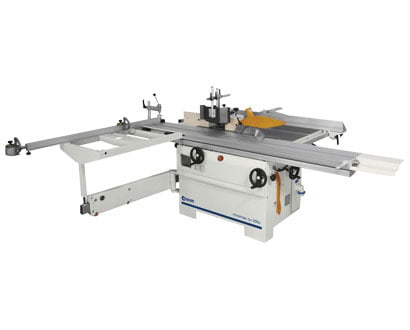

SCM Combination Machine Minimax Cu 300 C (R005602)

- Pre-setting for mortiser

- New design of the dust-conveyor, to protect the cutter block, for further system safety increase

- Version with maximum squaring stroke 2600 mm

- Belt driven scoring unit complete with blade

- 2 extra handwheels for the operating unit's movement

- Professional fences

- Xylent spiral knife cutter block with 3 series of knives

- Xylent maintenance kit

- Cast iron mortiser

- 0-16 mm self-centering (Wescott type) chuck

- Bridge planer protection (standard for CE version)

- Anodized aluminium tables for spindle moulder fence

- Spindle moulder shaft of 30 mm diam.

- Locking by countersunk socket screw

- useful working width [mm] : 300

- cutter block diameter (mm)/n. standard knives  : 72/3

- standard knives dimensions [mm] : 300 x 30 x 3

- max. stock removal [mm] : 4

- surfacing tables total length [mm] : 1510

- thicknessing table dimensions [mm] : 585 x 300

- feed speed on thicknesser [m/min] : 7

- min. ? max. working height on thicknesser [mm] : 3 ? 230

- cast iron saw-spindle moulder worktable dimensions [mm] : 1115 x 335

- blades tilting  : 90? ? 45?

- max. saw blade diam. with scoring blade installed [mm] : 315

- max. saw blade projection from table at 90?/45? [mm] : 100/78

- max. squaring stroke (standard) [mm] : 1600

- cutting width on parallel fence [mm] : 820

- max. useful spindle length [mm] : 100*

- spindle moulder speeds (at 50 Hz) [rpm] : 3500/7000/10.000

- max. tool diameter when profiling [mm] : 210

- max. diam. of tool lowered under the table at 90? [mm] : 180

- three-phase motors S6  :  5kW (6,6hp) 50Hz - 6kW (8hp) 60Hz

- exhaust outlets diameter [mm] : 120

- Spindle moulder available with following diameters:  : 30  32 - 35 - 40 - 50 mm 3/4" - 1" - 1 1/4"
