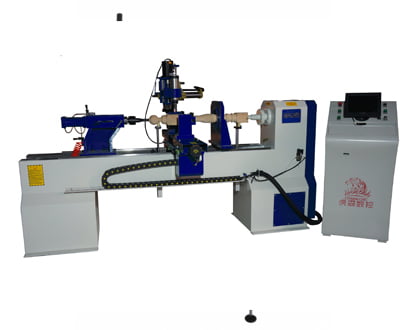

Double Turning Tools CNC Wood Lathe

- Function : Wood turning+Fluting+Cylinder Engraving+Flat Engraving

- Max working size : 1500*300mm

This lathe apply to Stair Wooden Railing, the leg of chair & Desk, Sofa

etc rotating wooden products machining.

- Lathe Body : Integrally cast (via the finite element analysis and design), 1.6 tons,

machining stability, small inertia

- Operational control : 12 Inches large color LCD display, distribution of computer, curve

drawing or photo scanning curve plotting, automatic generation of

international general G code program files, easy to learn, according to

the current machining work piece size requires real-time

modified files, can real-time simulation machining simulation,

one-click keyboard operation, convenient and quick.

- Spindle Motor : 5.5KW 4 pole Variable stepper motor/580W Beigela stepper

motor/2.2kw European Fiat Spindle/0-3500rpm ,Turn knob to adjust

any belt speed change?Can add and subtract by cylinder rotation

condition in the manufacturing process of rotating speed and feeding

speed, to reach to the best processing surface effect.

- X,Y,Z Axis Drive : Yako drive

- Feeding Speed : 3000mm/min

- Linear Guide : Taiwan  CSK High grinding linear square rail

- Drive train : Taiwan TBI High precision ball anti-backlash screw

- Technical support : English teaching videos and instruction book

- Voltage : 380V 50HZ

- Tools : Turning tools 2pcs/Fluting tools 2 pcs/engraving tools 1 box

Hardware, Software & Auxiliary configuration

Rotary center follow rest (5-6 wood square,);On the precise

positioning of double cylinder rack; Electronic automatic braking

frequency converter; The tail thimble manual drawing, combined with

pneumatic, convenient and flexible; Random wrench etc tool; The

basic pattern files; Engraving &groove multi-function spindle and

control part; Universal rotary joints, with control and easy to use

software. Intelligent protection work surface (limit alarm system), to

prevent collisions.

Control Software

The original COSEN's numerical control woodworking lathe operating

system, the realization of automatic dynamic updates, Support for

multiple software output code

Support Software

Autocad/Coreldraw/Type3/Artcam/Ucancam/Caxa/Mastercam/UG etc
