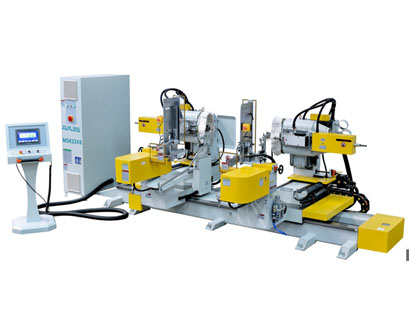

Double end Tenoning Machine - MDK224B
₹5,775,000.00 ₹7,218,750.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAL SPECIFICATION:
- Max. Working Length: 2000mm
- Min. Working Length: 180mm
- Max. Working Thickness: 80mm
- Max. Working Width: 200mm
- Max. Tenon Length: 40mm
- Tool horizontal pendulum angle:-23??? +13???
- Tool vertical pendulum angle:+45??? -13???
- 1st Cutter Motor Power: 5.5kw x2
- 2nd Cutter Motor Power: 2.2kw x2
- Cutter Speed: 12000r/min
- Total Power: 20.95kw
- Weight?????2530Kg
- Overall Size: 4200x2200x1750mm
- *Equip with 2 cutters and 2 Corner Cutter for testing.
