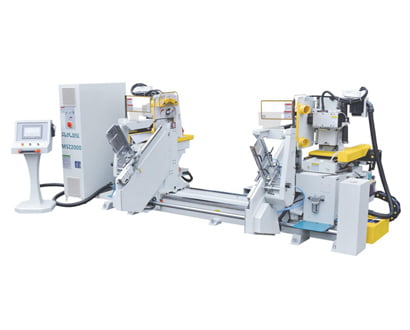

Double end Tenoner
₹5,775,000.00 ₹7,218,750.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAL SPECIFICATION:
- Working Length: 180 -2000mm
- Max. Working Thickness:55mm
- Max. Working Width: 145mm
- Max. Tenon Length: 40mm
- Cutter Speed: 9000 - 12000rpm
- Vertical Tilting: +45??? / -10???
- Horizontal Tilting: +13??? / -23???
- Main Spindle Motor Power: 5.5kw x2
- Total Power: 15.75kw
- Dust Exit: Dia.100*4
- Weight: Appro.2670kg
- Overall Size:4500*2200*1750mm
