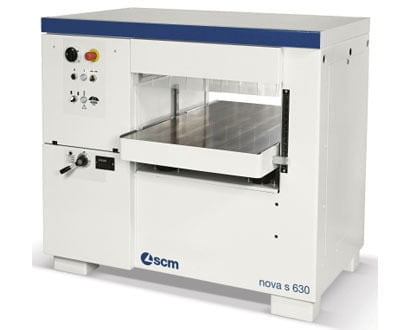

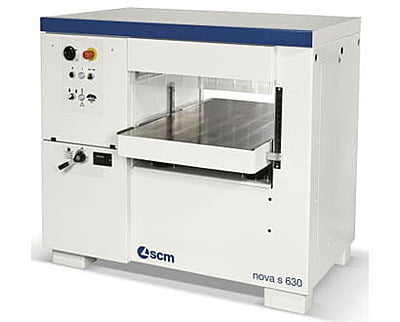

SCM Thicknessing Planer NOVA-S630(X) R011201
₹1,225,000.00 ₹1,531,250.00
STANDARD EQUIPMENTS AND DEVICES :
- Thicknessing table with vertical moving by means of 4 steel screws
- 1st front roller in helicoidal steel
- Steel outfeed roller/s instead of the rubber-coated steel roller/s
- Interchangeable feed rollers
- Cutterblock and knife fitting gibs with technical specs. and instructions engraved on same, complete with knife-setting device
- 7kW 50Hz (8kW 60Hz) motor power
- [S1] : 5,5kW 7,5HP 50Hz
- [S6 -40%] : 7kW 9,5 HP 50Hz
- Manual star-delta start (electrical protections and CE versions)
- Service kit for use and maintenance
- Xylent spiralknife cutterblock with 3 series of knife
- Xylent maintenance kit
- 10 spare inserts kit (15x15x2,5) for Xylent spindle
TECHNICAL FEATURES:
- Working width [mm] : 630
- Worktable dimension [mm] : 630x1000
- Working height (min/max) [mm] : 3,5/300
- Max. stock removal [mm] : 8
- Minimum working length [mm] : 260
- Minimum working width [mm] : 10
- Cutterblock speed [rpm] : 4500
- Cuterblock diameter [mm] : 120
- No. 4 knives [mm] : 35x3x640
- Feed speed [m/min] : 5-8-12-18
- Exhaust outlet diameter [mm] : 150
SAFETY / PROTECTIONS :
- Soundproof infeed and outfeed barriers
- Emergency pushbutton on front machine side
- Safety microswitch on protection hood
- Padlockable main switch
- Overload switch protection
- Auxiliary low voltage circuit (110 volt)
