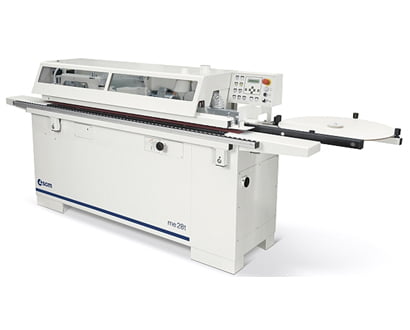

SCM Automatic Edgebander ME28 (R003301)
₹1,475,000.00 ₹1,843,750.00
GENERAl FEATURES:
- Effective and Efficient Solid Wood Edge Banding Up to 5 Mm and with 50 Mm Height
- control panel on machine infeed side
- machine frame made of high rigidity ribbed steel to guarantee an excellent support for the operating units
- top thick steel pressure beam with rubber coated wheels
- exclusive feed truck
- manual adjustment of top beam with automatic positioning of the operating units according to the selected panel thickness
- numeric indicator of the selected panel thickness
- glue smokes specific exhaust outlet; centralized extraction of the other dusts
- panel support roller which can be extended on the entire length of the machine
- safety enclosure
- electrical cabinet with PLC, padlockable main switch and overload protection
- emergency push buttons
OPERATING UNITS:
- PREMILLING UNIT
- GLUE POT UNIT, EDGE LOADING AND PRESSING SYSTEM
- SPECIAL END CUTTING UNIT WITH "RADIUS" FUNCTION
- SUPERPOSED TRIMMING UNIT
- EDGE SCRAPING UNIT
- BRUSHING UNIT
TECHNICAL SPECIFICATIONS:
- worktable height [mm] : 904
- thickness of rolled edges [mm] : 0,4 - 3
- thickness of edges in strips [mm] : up to 5
- min. ?????? max. panel height [mm] : 12 to 50
- min. ?????? max. panel height using edge scraping unit [mm] : 16 to 50
- min. panel length/width with rolled edges [mm] : 190/110
- min. panel length cut only on the front [mm] : 120
- feed speed [m/min] : 7
- feed motor power [kW] : 0,55
- pneumatic operating pressure [bar] : 6,5
- exhaust outlet diameter (base) [mm] : 120
- exhaust outlet diameter (glue pot) [mm] : 60
- operating temperature [???C] : 20 to 190
PREMILLING UNIT:
- motor power [kW] : 3
- blade rotation speed [rpm] : 7.2
- no. 1 diamond cutter : ?????? 80 mm H="56" Z2
- stock removal [mm] : 0,5/1/1,5/2
GLUE POT UNIT:
- motor power [kW] : 0,18
- glue capacity [kg] : 0,8
SPECIAl END CUTTING UNIT:
- motor power [kW] : 0,37
- end cutting blade : ?????? 90 mm 10
- blade rotation speed [rpm] : 12000
TRIMMING UNIT:
- motor power [kW] : 0,75
- widia cutters : ?????? 75 mm Z4
- cutters rotation speed [rpm] : 12
BRUSHING UNIT:
- motor power (each) [kW] : 0,14
- brush rotation speed [rpm] : 2800
