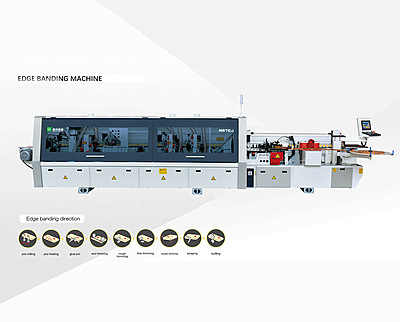

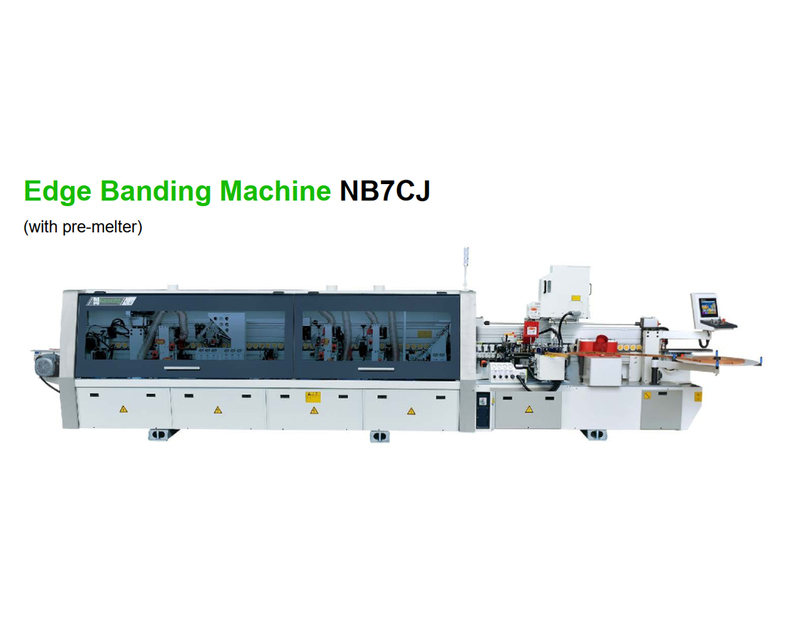

Narrow Edge Banding Machine NB7CJ-415V(2KGPUR)
FEATURES:
Pre-milling
Spraying device (release+ cleaning agent)
Pre Heating
Pre-Melter gluing system
Edge Tape Supporter
Snipping End Cutting
Pressure Rollers
Lubrication oil pump
End Trimming
Rough Trimming
Fine trimming with pneumatic auto tools adjustment
Fine Trimming R1.5 Cutter
Corner Trimming R1.5 Cutter
Scraping unit with 2 position pneumatic auto adjustment.
Profile Scrapping R1.5 Cutter
Buffing
Safety device Feeding protector and thickness detection
Safety device Interval feeding detection system
Safety device E-Stop
Dust Collection
Remote switch & Indicator light
Start Stop Switch
Energy Saving quick start/stop in one click
10" Control System
Production report
2KG PUR device no.1
TECHNICAL SPECIFICATIONS
- Mini. Panel size : 120x80mm
- Panel thickness : 10-60 mm
- Edge tape thickness : 0.4 - 3 mm
- Feeding speed : 16/20/24 m/min
- Power supply : 415 V; 50 Hz
- Air pressure required : 0.7MPa
- Operation system : 10’’ touch screen
- Dust collector Dia.xN : 125mmx5
- Total power : 24 Kw
- Approx. weight : 3670 kg
- Overall dimension : 7700*1450*1650 mm
