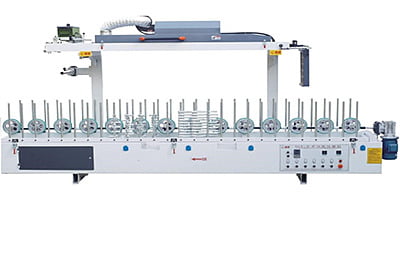

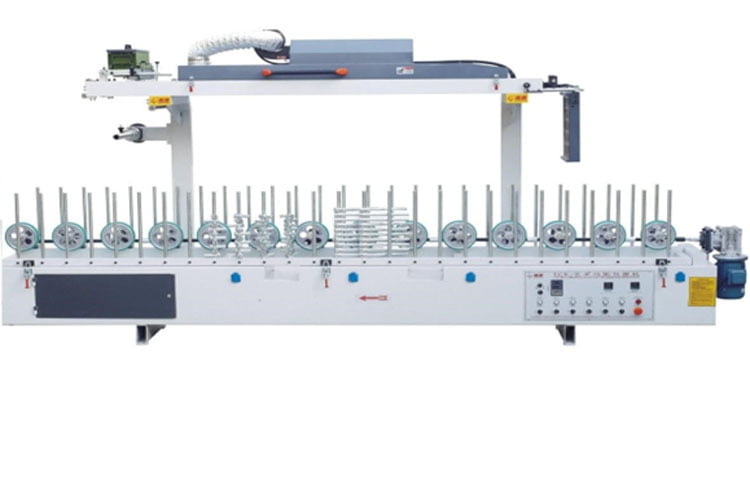

Cold Glue Profile wrapping machine
₹1,075,000.00 ₹1,343,750.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
Description:
- Glue system: knife coater with glue tank for oily glue
- Glue type :cold oily glue
- Covering film: pvc,
- Base Material: MDF, plywood, aluminum, particle board,
steel, PVC, WPC, etc. Primer station is mainly for upvc or pvc profile .
Work process :
- Wrapping machine works by using different angles roller coated on
the work pieces to suppress, in the process, the process pressure
rate and pressure can be adjusted according to different coating material.
- A full set of manufacturing processes can be a full automatic assembly line,
the normal working can be done without human intervention,
it just need to feed material from adhesive coating to expect the sending
until the product be finished which reduce labor costs and ensure the passing
rate of processed products and processing efficiency.
Parameter Details:
- Max.covering film width : 300 mm
- Max.processing thickness : 90mm
- Min. Processing length : 600mm
- Feed speed : 0-30m/min
- Motility power : 1.5kw
- Stick glue powe r: 0.4kw
- Heating power : 5.5kw
- Machine weight : around 1800kgs
- Max.diamater of roll cover material : 400mm
- Machine Dimension : 6000*600*2000mm
