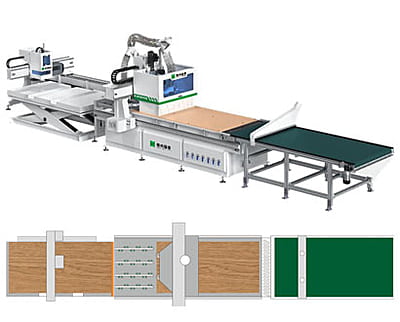

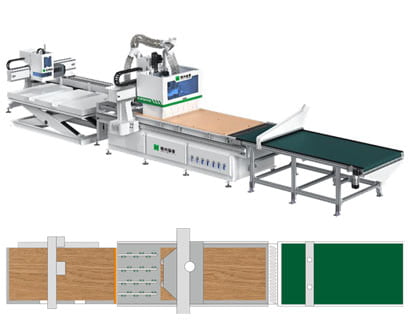

CNC Nesting machine with AL+UL With ( Rotatalbe labeling aevice; scanner, optimizing software)
₹3,450,000.00 ₹4,312,500.00
Available on Request
FEATURES:
- 1pc Vacuum Pump
- Automatic Loading
- Pre-Positioning Vacuum Cup
- Vacuum cup and roller bracket
- Rotatable Labelling
- Automatic Greasing
- Side Positioning Cylinders & Positioning Cups
- 9kW main Spindle + 10 drills drilling block
- Automatic Line Tool Changer 12 Slots
- Unloading Pusher
- Rear Positioning Cylinders and Dust Collector
- Auto Unloading
- Tank Cable Chain
- Tool Setting gauge and locker
- Hand Wheel and Foot Switch
- Computer with Windows Dell Display USB Port & easy for remote assistance
- Optimizing Software
- Workpiece Editor Software
- Online Optimization Software (One Year free of charge)
TECHNICAL SPECIFICATIONS:
- Control system : SYNTEC
- Working range X : X-axis: 2,800 mm
- Working range Y : Z-axis: 50 mm
- Working range Z : Y-axis: 1,220 mm
- Working table : Size: 2,800�1,220 mm Height: 950mm
- Max. traveling speed X : X-axis: 100 m/min
- Max. traveling speed Y : Z-axis: 20 m/min
- Max. traveling speed Z : Y-axis: 100 m/min
- Main spindle Quantity : 1
- Main spindle Power : 9 kW
- Main spindle Tool Holder : ISO30
- Main spindle Tool Speed : 24000 rpm
- ATC : Servo control Line tool changer with 12 slots
- Vacuum pump Quantity : 1
- Vacuum pump Power : 7.5 kW
- Vacuum pump Suction flow rate : 250 m3/h
- Dust extraction Diameter : 150 mm*1x125mm*3 Speed required: 28 m/s
- Air supply : 6-7 kg/cm2
- Power supply : 380V, 3-phase, 50 Hz
- Total power : 27.31 kW
- Floor space : L�W�H: 11000�2460�2500 mm
- Net weight : 4,600 kg
