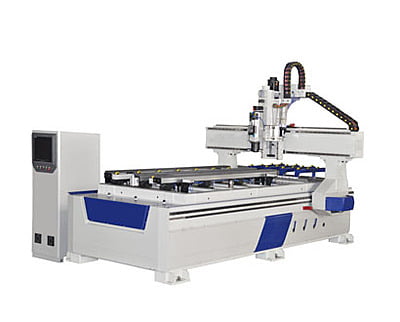

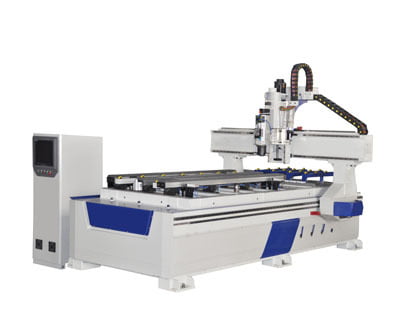

CNC Machining Center M6 1200 x 2440 x 220 mm , 8Collect, Servo Spindle

FEATURES

- The third generation of countertop movable machining center with high precision and stability

- The four-axis design is based on the three-axis design, and the operation is more stable and powerful.

- The internationally advanced design of the bed structure is subjected to two times of

   precision machining after high temperature tempering and stress removal.

- Multi-style workpiece clamping

TECHNICAL DATA:

- X axis : 1220mm

- Y axis : 2440mm

- Z axis : 220mm

- Structure : Strong seamless steel structure

- X,Y,Z structure : X, Y Germany WMH Herion helical rack and pinion, Z TBI ball screw

- Idle speed greter than or =  : 35000mm/min

- Working speed greter than or = : 20000mm/min

- Spindle : 9kw air cooling spindle. 0 -18000rpm/min

- Tool Magazine : Line auto tool changer 8 Collect ER32

- Operating system : Original WEIHONG control system

- Motor and Driver : Delta servo motor and driver(Z axis with brake function)

- Reducer : Sophisticated UIKER reducer

- Working voltage : AC380V 3phase

- Vacuum pump : 7.5kw vacuum pump

- Inverter : 9kw invert

- Guide rail : Taiwan CSK 30 linear guide rail

- Cable Carrier : Highly flexible, silent, high-speed cable carrier

- Command code : G code

- Clamping : PVC sheet split vacuum adsorption table

- Tool change method : Pneumatic tool change

- Location Pin : Yes, with Location

- Suitable Software : Artcam software, Alphacam software,UG,Alphacam etc

- Package size : 3900mm *2220mm*2400mm

- Gross weight : 2300KGS

*Software needs to purchase by customer as mentioned in Suitable Software .
