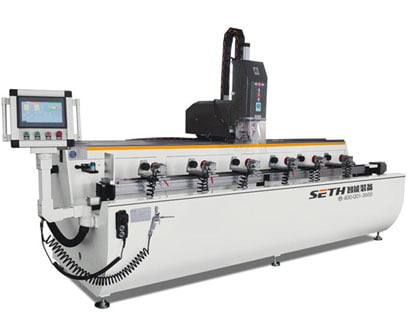

Double head CNC drilling milling machine for aluminium profile
₹2,050,000.00 ₹2,562,500.00
Available on Request
or aluminum profile with JDPaint software / SYNTEC system
TECHNICAL DATA:
- Power : 380V 50Hz
- Total power : 6.5Kw
- Power of spindle motor : S1: 3.5kw
- Working pressure : 0.6?0.8MPa
- Max. RPM : 18000rpm
- X axis stroke : 3000mm
- Y axis stroke : 500mm
- Z axis stroke : 350mm
- X axis speed : 50000mm/min
- Y,Z speed : 15000mm/min
- dimension : 4180x1600x2200mm
- weight : 1600kg
